INTERCOOLER KIT WAGNER COMPETITION RENAULT MEGANE MK4 RS TROPHY

Description

200001145 – COMPETITION INTERCOOLER KIT Renault Megane 4 RS (Trophy)

The WAGNERTUNING high-performance intercooler has a new racing mesh (tubular fin) with the dimensions 315 mm x 227 [142] mm x 165 [150] mm [stepped]. This corresponds to an external network volume of 11.4 litres. Therefore, the Wagner Tuning Competition intercooler for Renault Megane 4RS offers a 6% larger front surface area and 47% more external network volume than the original intercooler.

The die-cast aluminum end boxes were designed in CAD and optimized with the help of CFD simulations (for ideal internal air flow). The result is excellent cooling properties with the lowest possible back pressure. So this kit is perfect for racing. Optimal cooling of the charged air with a significant increase in performance!

An anti-corrosion coating with excellent thermal conductivity protects the WAGNERTUNING intercooler from all environmental influences, ensuring a permanent and optimal cooling effect. Assembly takes place at the original fixing points and is easy to carry out (plug and play). All our products are subject to constant quality monitoring.

Inlet diameter Ø65 mm; Outlet diameter Ø67.2 mm (OEM snap connection)

OEM intercooler:
290 mm x 233 mm x 115 mm
V = 7.77 L
A = 675 cm²

WAGNERTUNING intercooler:
315 mm x 227 [142] mm x 165 [150] mm [ graduated]
V = 11.4 L
A = 715 cm²

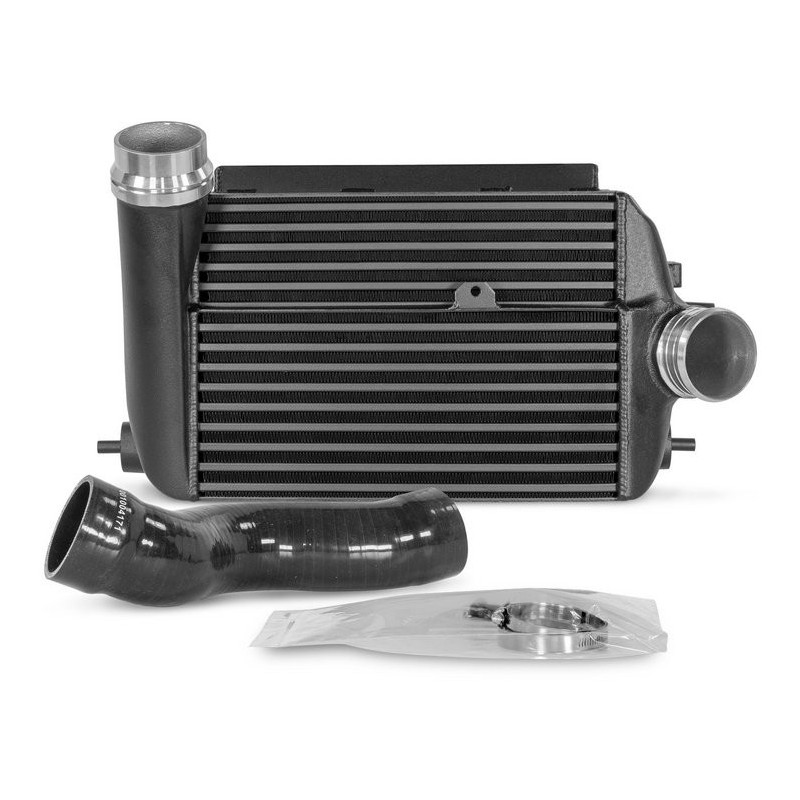

Supply:
– 1 intercooler
– 1 flexible silicone hose
– 1 mounting material
– 1 installation instructions
