AIRTEC MOTORSPORT INTERCOOLER – FORD FIESTA MK8 ST-200 STAGE 3

Description

AIRTEC MOTORSPORT COMPETITION INTERCOOLER KIT – FORD FIESTA MK8 ST-200 STAGE 3

TECHNICAL DATA

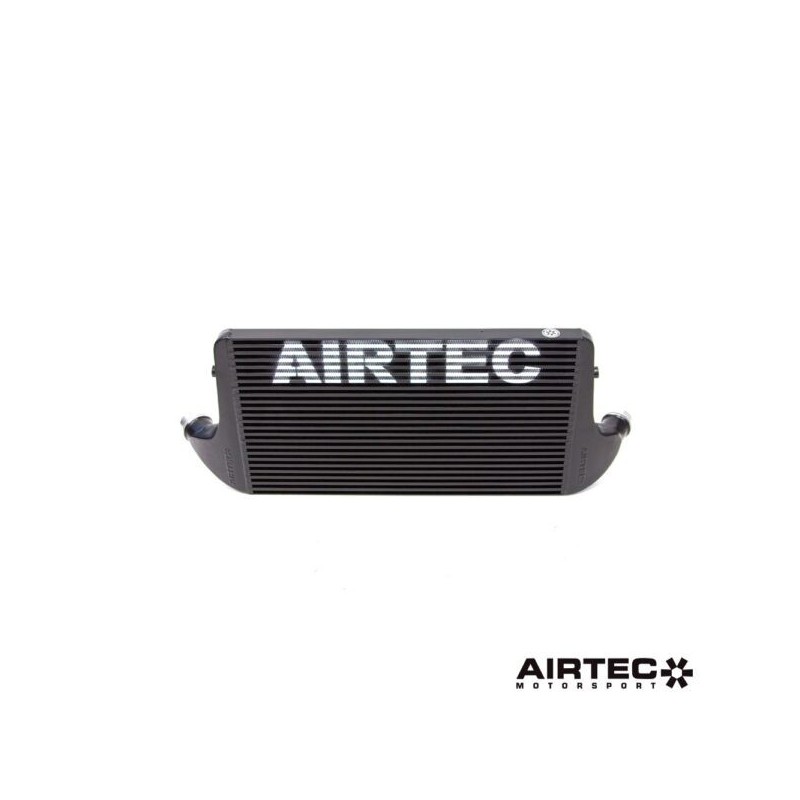

AIRTEC Motorsport Front Mount Intercooler Stage 3 Upgrade for Fiesta Mk8 ST-200

Developed and manufactured at AIRTEC HQ in the UK, the Stage 3 Front Mount Intercooler Kit is suitable for owners of modified Mk8 Fiesta STs who want the highest level of cooling efficiency, perfect for track or road.

This freer-flowing intercooler features a full-size single-pass core design that covers the full width of the vehicle's grille area. The centre section has a depth of 80mm at the bottom and 40mm at the top, which fits perfectly in front of the standard protection bar and behind the bumper without any modifications required. It therefore offers a huge increase in surface area and volume over the standard, and therefore in charge temperatures.

The complete kit includes AIRTEC Motorsport cast end tanks, laser-cut brackets and all the necessary accessories for a direct, bolt-on installation.

Its proven cooling efficiency and direct fitment make it an essential modification for all modified Fiesta Mk8 ST models.

Dimensions:

Original Intercooler

Width: 690 mm

Height: 140 mm

Depth: 75 mm

Inlet: 50 mm

Outlet: 55 mm

Front Area: 966cm²

AIRTEC Motorsport Intercooler

Width: 710mm

Height: 415mm

Depth: 80mm to 40mm centre section

Inlet: 60mm

Outlet: 67mm

Front area: 2,945cm²

Features

• Cast end tanks for optimised airflow
• Larger stepped bar and plate-type intercooler core
• Comes complete with comprehensive fitting instructions
• Proven power increases and cooling efficiency
• Available in satin black
