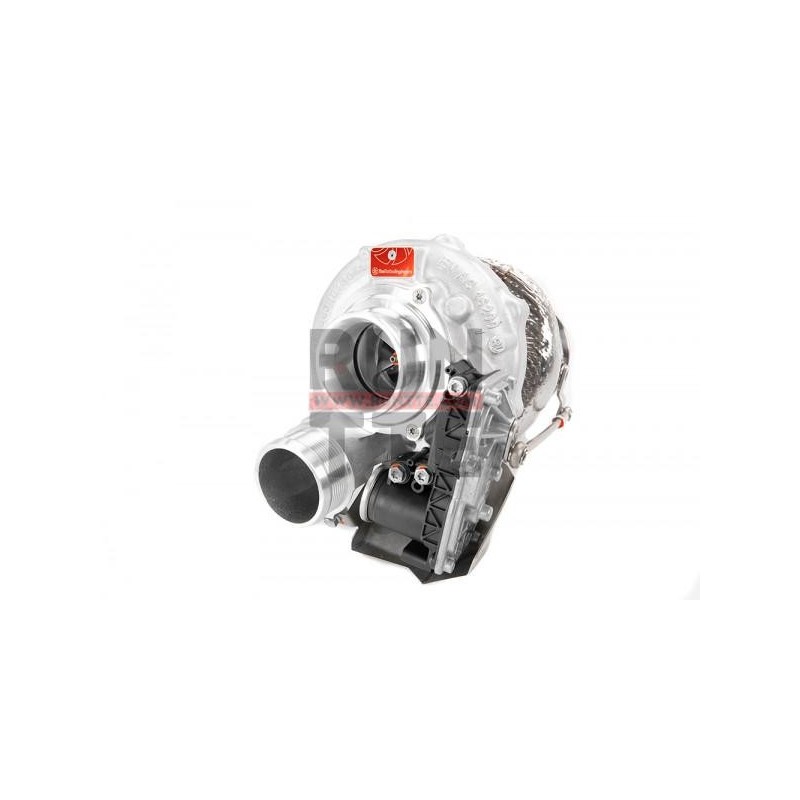

TTE560 TURBOCHARGER UPDATE – MERCEDES AMG A45 / A45S / CLA / GLA M139

MERCEDES AMG TTE560 A45 / A45 S / CLA / GLA M139

TTE""s first hybrid turbocharger for the M139 AMG 2.0 inline 4-cylinder engine.

The Stage 1 hybrid uses a larger BorgWarner supercharger and still retains the original exhaust turbine and ball bearing system, so it focuses on quick everyday boost response with motorsport durability.

Balance

Precise balancing of turbochargers is a key critical factor in becoming a TTE upgrade unit, as longevity and performance are key. Good balance also improves acoustics. Subsequently, great attention is paid to all TTE turbochargers to achieve the high balance standards. First the parts are balanced at low speed up to 2800 rpm on multiple planes using the single parts machine, then the components are assembled and then the CHRA is dynamically balanced, but this time depending on the application up to 250,000 rpm on multiple planes using the VSR system to achieve maximum balance, to a standard far superior to the OEM. Each turbocharger comes with a serial numbered balance test document.

Main features of the product:

• Original BorgWarner turbocharger as basic part
• Fast response and durability at high boost levels
• BorgWarner Billet Milled 6+6 BLADE compressor (tested at 550hp+)
• BorgWarner turbine
• OEM ball bearing system
• Plug and play installation
• Software recalibration required
• Proven TheTurboEngineers quality
• The individual parts are finely balanced, then the assembled components and the balanced high-speed VSR core
• Supplied with a scale test results document
• Made in Germany
