HIGH PERFORMANCE ENGINE KIT BAR-TEK 2.0 TSI EA888 GEN2 / EA888 GEN3 MQB

Description

Power up to 800 HP: JE piston kit and Bar-Tek connecting rods for 2.0L TSI EA888.2 / EA888.3 engines with timing chain

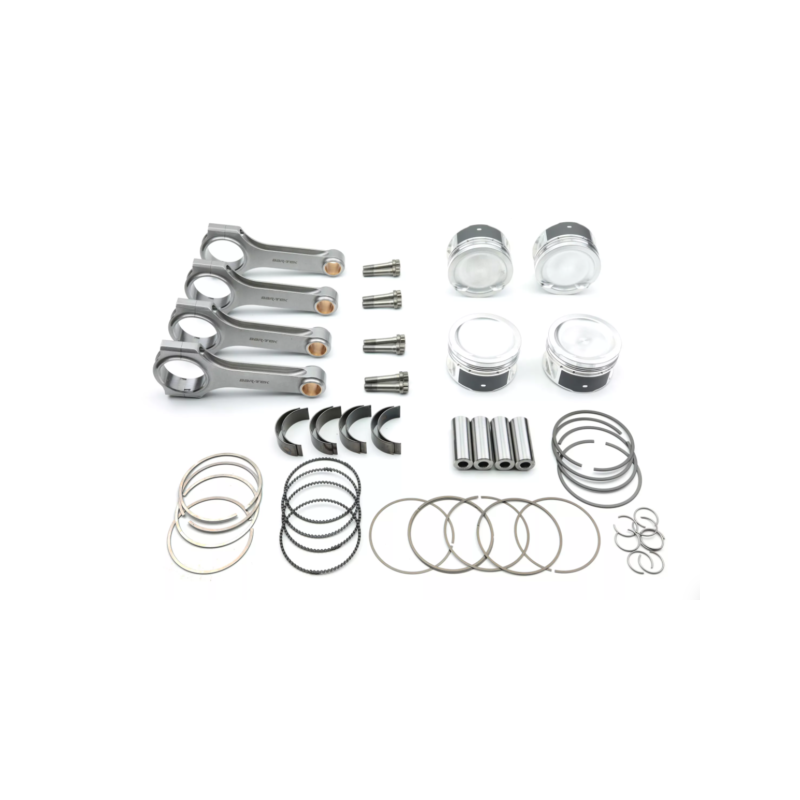

With this set you have the perfect combination of forged pistons and connecting rods for your 2.0L TSI engine: The high-performance pistons come from JE Pistons, the robust H-Beam steel connecting rods come from BAR-TEK® and with them are racing piston bearings from LCA! These components not only harmonize perfectly with each other, but you also save with the set compared to the single purchase.

JE Pistons are extra reinforced for extreme performance and at the same time quite light. This station wagon is obviously perfect for motorsports. Everything needed for installation is supplied with the pistons: bolts, rings and clips.

Our H-Beam connecting rods are also extremely light and at the same time very stable. Thanks to their design, they easily withstand high pressure loads. They are milled from solid and have an additional hole (shotgun drilled) for better lubrication of the piston pin. They also come with everything needed for assembly: the matching ARP expansion screws and assembly paste.

Features of high performance pistons:

• Extremely light thanks to the special alloy
• Reinforced for maximum performance
• Also for standard bore 82.50 mm
• 21 mm piston pin
• For 2.0L TSI with engine type EA888
• Complete set incl. pins, elastic bands and clips
• Installation and drilling dimensions attached

Features of H-Beam connecting rods:

• Original BAR-TEK®
• high strength milled from solid material
• suitable for extreme performance increases up to approx. 1000 HP
• extremely light and very stable
• Magnaflux inspected
• 4 pieces per set
• Dimensions. 144 x 21 mm
• With ARP 2000 3/8 expansion bolts?
• ARP assembly paste
• Weight for connecting rod with bolts only 599 grams
• With additional hole for pin lubrication (flush drilled)
• precisely angled and tested on our premises

Features of ACL connecting rod bearings:

• Racing bearing
• Coated
• Extra hole for piston pin

Suitable for:

Chained 2.0L TSI EA888 engines used in Golf Mk6, Audi TT, Audi A3 and other 2.0L TSI engines.

The specified compression is in combination with a 0.79 mm cylinder head gasket

Suitable for

• Audi A1 / S1 8X | BJ 2010-2018 2.0L TSI (EA888 Gen.3 MQB) CWZA | 231 PS
• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA888) CAWB | 200 HP
• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA888) CCZA | 200 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) CJXC | 300 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) CJXG | 310 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) CZPB | 190 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) DJHA | 310 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) DNUE | 300 HP with OPF
• Audi Q2 / SQ2 GA | BJ 2016-> 2.0L TFSI (EA888) CZPB | 190 HP
• Audi Q2 / SQ2 GA | BJ 2016-> 2.0L TFSI (EA888) DNU | 300 HP
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CCTA | 200 HP
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CCZC | 170 HP
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CPSA | 211 PS
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CULB | 180 HP
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CULC | 220 HP
• Audi Q5 / SQ5 FY | BJ 2017-> 2.0L TFSI (EA888) DAXB | 252 PS
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA888) CCZA | 200 HP
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA888) CESA | 211 PS
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA888) CETA | 211 PS
• Audi TT / TTS / TT RS FV/8S | BJ 2014-> 2.0L TFSI (EA888 Gen.3) CHHC | 230 PS
• Audi TT / TTS / TT RS FV/8S | BJ 2014-> 2.0L TFSI (EA888 Gen.3) CJXG | 310 HP
• Audi TT / TTS / TT RS FV/8S | BJ 2014-> 2.0L TFSI (EA888 Gen.3) DNU | 306 PS with OPF
• Cupra Ateca I | BJ 2018-> 2.0L TSI (EA888 Gen.3 MQB) OPF DNUE | 300 HP
• Cupra Leon I | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) CJXC | 300 HP
• Cupra Leon I | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) CJXG | 310 HP
• Seat Ateca I | BJ 2016-> 2.0L TSI (EA888 Gen.3 MQB) 300 PS
• Seat Ateca I | BJ 2016-> 2.0L TSI (EA888 Gen.3 MQB) DKZA | 190 PS with OPF
• Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TSI (EA888) CCZB | 211 PS
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXA | 280 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXC | 300 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXE | 265 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXG | 310 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXH | 290 PS
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) OPF DKZA | 190 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) OPF DNUC | 290 PS
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) OPF DNUE | 300 HP
• VW Arteon I (Type 3H) | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) CZPB | 190 HP with OPF
• VW Arteon I (Type 3H) | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) DJHC | 280 HP
• VW Arteon I (Type 3H) | BJ 2017-> 2.0L TSI (EA888 Gen.3 u. Gen.4) OPF DNUA (Gen3) | 272 PS with OPF
• VW Eos I (Type 1F) | BJ 2006-2015 2.0L TSI (EA888) CAWB | 200 HP
• VW Eos I (Type 1F) | BJ 2006-2015 2.0L TSI (EA888) CCZA | 200 HP
• VW Eos I (Type 1F) | BJ 2006-2015 2.0L TSI (EA888) CCZB | 211 PS
• VW Golf VI (Type 5K1) | BJ 2008-2012 2.0L TFSI (EA888) CCZB | 211 PS
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CHHA | 230 PS
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CJXC | 300 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CJXC | 360 PS
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CJXE | 265 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CJXG | 310 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DJHA | 310 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DLBA | 245 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DNU | 290 PS
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DNUE | 300 HP
• VW Jetta / Vento / Bora VI – Jetta / Vento / Sagitar / Lavida – (Typ 162) | BJ 2010-2018 2.0L TSI (EA888) CPLA | 210 HP
• VW Passat B7 (3C/36) | BJ 2010-2015 2.0L TSI (EA888) CCZB | 211 PS
• VW Passat CC (35) | BJ 2008-2016 2.0L TSI (EA888) CAWB | 200 HP
• VW Passat CC (35) | BJ 2008-2016 2.0L TSI (EA888) CCZB | 211 PS
• VW Polo VI (Type AW) | BJ 2017-> 2.0L TSI (EA888 Gen.3B MQB) DKZC | 200 HP
• VW Scirocco III (Type 13) | BJ 2008-2017 2.0L TSI (EA888) CAWB | 200 HP
• VW Scirocco III (Type 13) | BJ 2008-2017 2.0L TSI (EA888) CCZB | 211 PS
• VW T / Bus T6 | BJ 2015-> 2.0L TSI (EA888 Gen.3) CJKA | 204 PS
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CAWA | 170 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CAWB | 200 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCTA | 200 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCZA | 200 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCZB | 211 PS
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCZC | 170 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCZD | 180 HP
• VW Tiguan II (Type AD1) | BJ 2016-> 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 HP
• VW Tiguan II (Type AD1) | BJ 2016-> 2.0L TSI (EA888 Gen.3 MQB) CZPA | 180 HP
• koda Kodiaq I (NS7) | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) 220 PS
• Škoda Octavia II (Type 1Z) | BJ 2004-2013 2.0L TSI (EA888) CAWB | 200 HP
• Škoda Octavia II (Type 1Z) | BJ 2004-2013 2.0L TSI (EA888) CCZA | 200 HP
• Škoda Octavia III (Type 5E) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CHHA | 230 PS
• Škoda Octavia III (Type 5E) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 HP
• Škoda Octavia III (Type 5E) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DLBA | 245 HP
• Škoda Superb II (Type 3T) | BJ 2008-2015 2.0L TSI (EA888) CCZA | 200 HP
• Škoda Superb III (Type 3V) | BJ 2015-> 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 HP
• Škoda Superb III (Type 3V) | BJ 2015-> 2.0L TSI (EA888 Gen.3 MQB) CJXA | 280 HP
• Škoda Superb III (Type 3V) | BJ 2015-> 2.0L TSI (EA888 Gen.3 MQB) DNUA | 272 PS
