AIRTEC MOTORSPORT – BIG BOOST HOSE KIT GOLF R MK8 EA888 GEN 4

Description

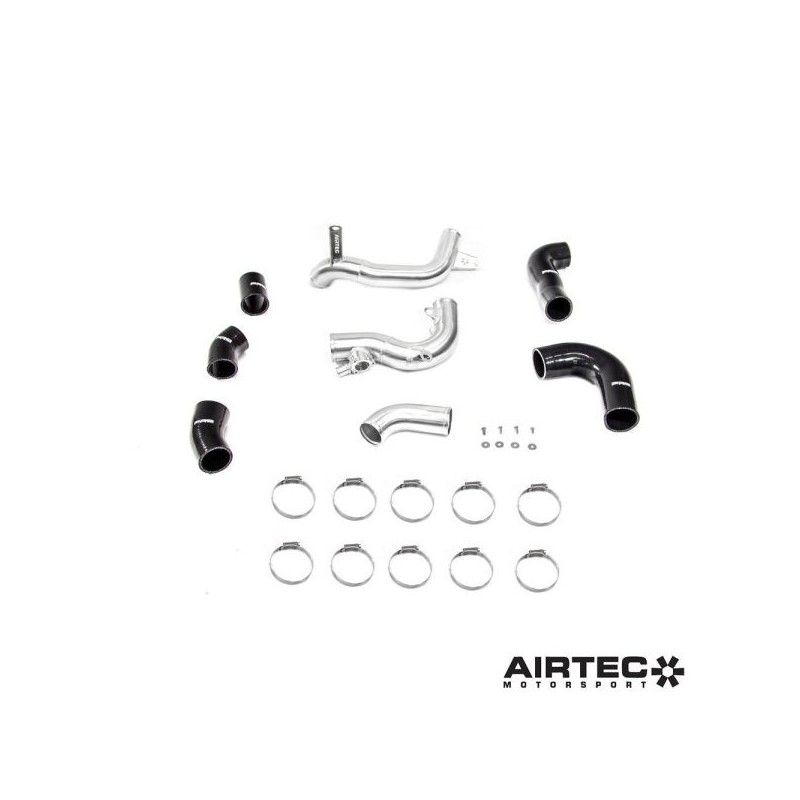

The complete 8-piece kit consists of three hoses made of lightweight aluminum for greater strength, so they do not break even with increased boost pressure, and five Pro Hoses silicone hoses to make assembly as easy as possible.

Technical data

As part of our expanding VAG product range, AIRTEC Motorsport is proud to launch our enlarged turbo inlet PIPE upgrade for the MQB Evo engine (300-320 HP), suitable for track or fast road use.

Developed in-house at AIRTEC""s UK headquarters, we""ve created a complete solution to enhance the car""s original piping, allowing for more flow and capacity, whilst reducing restrictions and improving response.

The complete 8-piece kit consists of three hoses made of lightweight aluminum for greater strength, so they won""t break even with increased boost pressure, and five Pro Hoses silicone hoses to make assembly as easy as possible.

For the cold side from the intercooler to the throttle body, the stock piping starts at 60mm and tapers to 58mm in diameter, but our replacement features a 70mm internal diameter until it reaches the throttle body, increasing both flow and capacity.

On the hot side coming from the turbo to the intercooler, the stock piping measures 60mm, while our kit features an internal diameter of 63mm end to end with no restrictions. It also eliminates the original resonator, which VW fits to reduce noise, but removing it improves flow, capacity and noise.

The kit requires no additional drilling or cutting for assembly and comes complete with all the correct fixings and accessories, as well as detailed instructions.

An essential element for all modified Golf R Mk8 models, as it helps to improve the flow and efficiency of the supercharging system.

ONLY FIT WITH AIRTEC MOTORSPORT INTERCOOLER UPDATE

Dimensions:
OEM COLD SIDE PIPE: 60 mm
Cross section: 2,827 mm²

AIRTEC MOTORSPORT COLD SIDE PIPE: 70 mm
Cross-sectional area: 3,848.5 mm²
36% larger in cross-sectional area

OEM HOT SIDE PIPE: 60 mm
Cross section: 2,827 mm²

AIRTEC MOTORSPORT HOT SIDE PIPE: 63 mm
Cross section: 3,117.2 mm²
10% larger cross section

Compatibility:
Audi S3 8Y – from 2020 onwards
Cupra Leon Mk4 300 TSI FW – from 2020 onwards
VW Golf Mk 8 GTI Clubsport – from 2020 onwards
VW Golf Mk8 R – from 2020 onwards

Features:

• Complete 8 piece kit designed specifically for the Golf R Mk8
• Larger internal diameter tubing provides better flow
• 36% greater cross-sectional area on the cold side piping
• 10% greater cross-sectional area on the hot side piping
• Lightweight aluminum construction for greater strength
• High quality Pro Hoses silicone connectors
• Comes complete with all accessories and fasteners
• Assembly instructions included
