INTERCOOLER KIT WAGNER COMPETITION AUDI SQ5 3.0BiTDI / AUDI Q5 3.0TDI

Description

200001084 – Competition intercooler kit for:

Audi SQ5 3,0BiTDI 8R 230KW / 313PS 2012-2015 (CGQB)
Audi SQ5 3,0BiTDI Competition 8R 240KW / 326PS 2015- (CVUB)
Audi SQ5 3,0BiTDI Plus 8R 250KW / 340PS 2015- (DEHA)
Audi Q5 3,0TDI 8R 180KW / 245PS 2011-2014 (CDUD)
Audi Q5 3,0TDI 8R 190KW / 258PS 2013- (CTBA)

D The high-performance intercooler has the following core dimensions (610mm x 440mm x 65mm = 17,446L) and thus offers a 178% larger inflow area and a 158% larger charge air volume compared to the original intercooler. The high performance competition net is a high quality tubular fin net with internal turbulators. As a result, the weight of the intercooler, despite its size, is only 9.1 kg.

The die-cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow with the help of CFD simulations. An air duct integrated into the terminal box allows for homogeneous filling of the competition""s high-performance network. The connection diameter has been increased to Ø67mm, so this kit comes with reinforced silicone hoses. Overall, this intercooler has much lower back pressure than the standard intercooler.

In addition, all our intercoolers have an anti-corrosion coating with excellent thermal conductivity. This ensures permanent, optimal cooling with a significant increase in performance. The kit is completely ready for installation, simply replace it with the standard intercooler.

Tested up to 6 bar and stable at pressure. All our products are subject to constant quality monitoring. Suitable for racing.

OEM intercooler: cooling surface 1207.5 cm² / charge air volume 9.05 l
WT Competition LLK: cooling surface 2684 cm² / charge air volume 17.4 l

All our products are subject to constant quality monitoring.

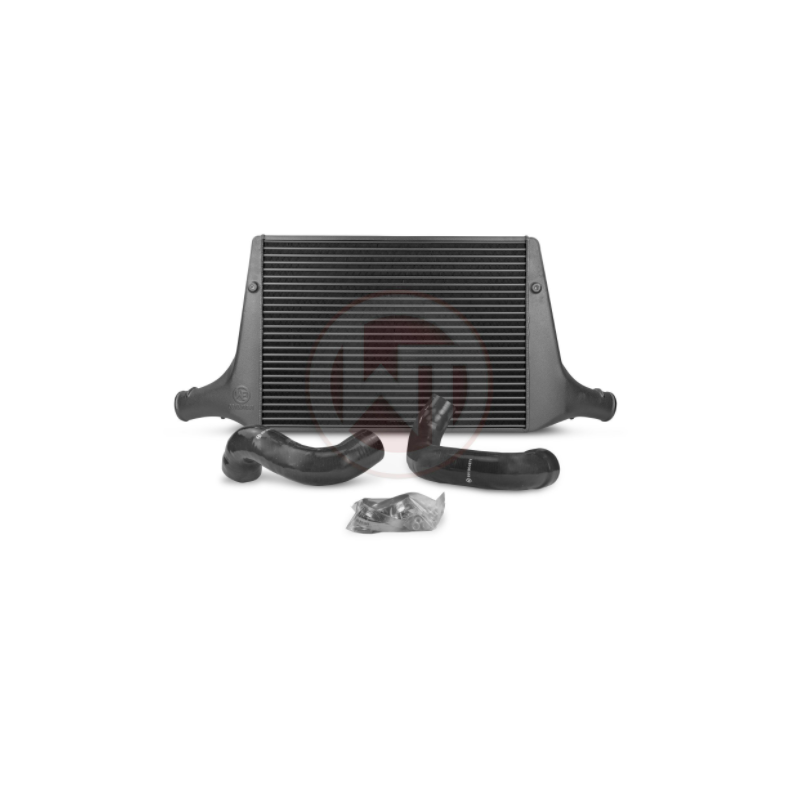

Supply:

1 intercooler
2 charge air pipes [inlet and outlet 67 mm]
4 hose clamps
1 fastening material
1 assembly instructions
