BAR-TEK 2.0 TSI EA888 GEN3 MQB ULTIMATE HIGH BOOST ENGINE KIT

Description

This kit is made for you if you take performance seriously. Our ULTIMATE kit includes everything you need to make you and your engine happy: power up to 1000 HP with your 2.0L TSI engine!

Perfectly tuned: ULTIMATE 2.0L TSI kit for performance up to 1000 HP

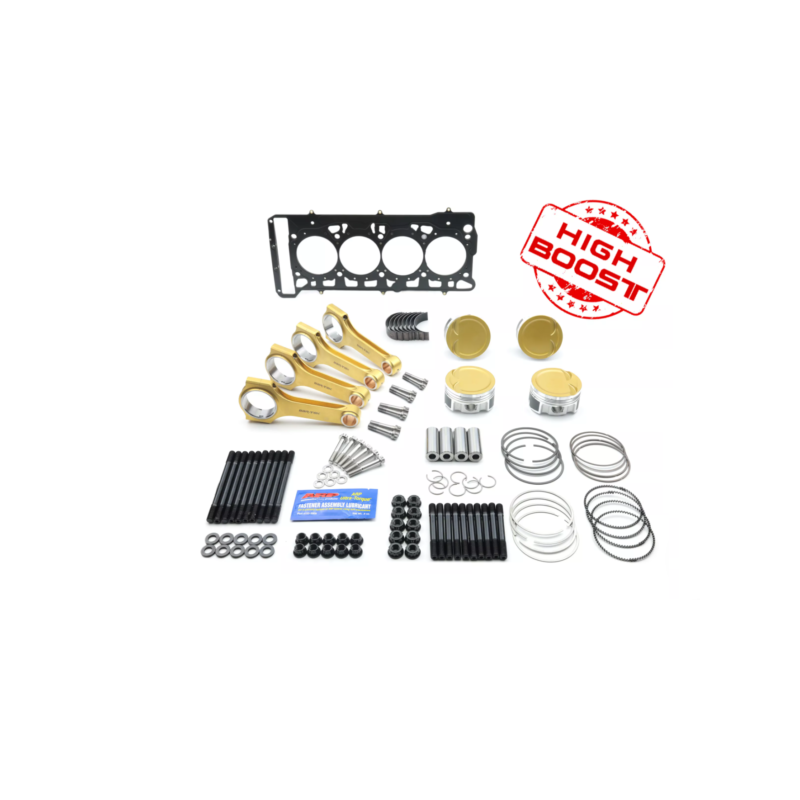

Whenever you think more isn""t possible, think about this kit. Because here we have outdone ourselves once again. The ULTIMATE kit isn""t called that for nothing! Here you have everything you need for the best performance with your 2.0L TSI: a perfectly matched combination of forged pistons, connecting rods, connecting rod screws, connecting rod bearings, head gasket and stud.

Visually alone, this set can do it all: Our BAR-TEK® H-Shaft steel connecting rods are riveted in titanium, which is why they shine gold. The matching high-performance pistons from JE Pistons are available as the Ultra series. All other parts are also high quality: ARP connecting rod bolts, ACL connecting rod bearings, Cometic MLS head gasket and ARP head stud.

This is really all you need. Not only do these components work in perfect harmony with each other, but the kit also saves you money compared to purchasing them individually!

Extreme kit for extreme performance

Our kit is not just an eye-catcher, it is also designed for extreme performance. With this kit you can reach up to 1000 HP with your 2.0L TSI! This is because we only put the best components in our Ultimate Kit and they are perfectly matched to each other.

The JE Pistons piston in this kit is extra coated for extreme performance and comes with high boost piston pins. At the same time they are still quite light. This combination is obviously perfect for motorsports. Everything needed for installation is supplied with the piston: bolts, rings and clips.

Also extremely light and at the same time very stable are our special connecting rods made of nitrided titanium steel. Thanks to their surface, they can withstand high pressure loads without problems. They are milled from solid and have an additional hole for better lubrication of the pin (Rifle Drilled). They also come with everything you need for installation: matching ARP2000 expansion bolts and installation paste.

These two parts are the stars of the kit and are complemented by high-performance bolts, racing lead bearings and the like. As said, it simply doesn""t work anymore!

High Performance Piston Features:

• Extremely light thanks to the special alloy
• Reinforced for maximum performance
• Also for standard bore 82.50 mm
• 21 mm piston pin
• For 2.0L TSI with third generation EA888 type engine
• Installation and drilling dimensions attached

Features of the nitrided titanium H-Shaft connecting rod:

• Titanium nitride
• high resistance milled from solid
• suitable for extreme power increases of 1000 HP
• extremely light and very stable
• Magnaflux inspected
• 4 pieces per set
• Dimensions: 144 x 21 mm
• Weight for connecting rod with screws only approximately 600 grams
• With oil riser hole for pin lubrication (Drilled Rifle)
• Precisely angled and tested in our factory
• WITH ARP 2000 3/8 expansion screws?

Features of ACL connecting rod bearings:

• Racing bearing, ACL Race
• extra coated
• extra hole for the piston pin

Features of APR Head Stud:

• A MUST for all engines that operate with higher boost pressure!
• The most important bolts from the world market leader ARP.
• The studs are made of 8740 Chromoly steel and have rounded threads.
• Extensible steel up to 40% stronger than stock bolts.
• All ARP performance bolt kits include ARP paste.
• Additional ARP bolts for bearing blocks

Features of the Cometic MLS head gasket

• Multilayer metal head gasket
• Butt thickness for an optimal compression ratio of 9.5:1

Suitable for all 2.0L TSI EA888 engines with chain installed on Golf 7, Audi TT, Audi A3, Leon Cupra and many other third generation 2.0L TSI engines.

We recommend in any case to reinforce the valve train with our valve springs and Ferrea valves.

Suitable for

• Audi A1 / S1 8X | BJ 2010-2018 2.0L TSI (EA888 Gen.3 MQB) CWZA | 231 PS
• Audi A1 / S1 GB | BJ 2018-> 2.0L TFSI (EA888) DKZC | 200 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 1.8L TFSI (EA888 Gen.3 MQB) CJSA | 180 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 1.8L TFSI (EA888 Gen.3 MQB) CJSB | 180 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) CJXC | 300 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) CJXG | 310 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) CZPB | 190 HP
• Audi A3 / S3 / RS3 8V | BJ 2012-> 2.0L TFSI (EA888 Gen.3 MQB) DJHA | 310 HP
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CAEA | 180 HP
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CAEB | 211 PS
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CDNB | 180 HP
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CDNC | 211 PS
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CFKA | 180 HP
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) 211 HP (CA & USA)
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) 220 HP (CA & USA)
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CDNB | 180 HP
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CYNB | 252 PS
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CYPA | 252 PS
• Audi Q2 / SQ2 GA | BJ 2016-> 2.0L TFSI (EA888) CZPB | 190 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CADA | 211 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CAEB | 211 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDNB | 180 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDNC | 211 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDZA | 180 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNBC | 180 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCB | 180 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCD | 225 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCE | 230 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CPMA | 211 PS
• Audi TT / TTS / TT RS FV/8S | BJ 2014-> 1.8L TFSI (EA888 Gen.3) CJSB | 180 HP
• Audi TT / TTS / TT RS FV/8S | BJ 2014-> 2.0L TFSI (EA888 Gen.3) CHHC | 230 PS
• Audi TT / TTS / TT RS FV/8S | BJ 2014-> 2.0L TFSI (EA888 Gen.3) CJXG | 310 HP
• Cupra Leon I | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) CJXC | 300 HP
• Cupra Leon I | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) CJXG | 310 HP
• Seat Ateca I | BJ 2016-> 2.0L TSI (EA888 Gen.3 MQB) 300 PS
• Seat Ateca I | BJ 2016-> 2.0L TSI (EA888 Gen.3 MQB) DKZA | 190 PS with OPF
• Seat Exeo I (Type 3R) | BJ 2008-2013 2.0L TFSI (EA113, EA888) CDND | 210 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXA | 280 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXC | 300 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXE | 265 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXG | 310 HP
• Seat Leon III (Type 5F) | BJ 2012-2020 2.0L TSI (EA888 Gen.3 MQB) CJXH | 290 PS
• VW Golf VII (type AU) | BJ 2012-2019 1.8L TSI (EA888) CJSB | 180 HP
• VW Golf VII (type AU) | BJ 2012-2019 1.8L TSI (EA888) CXB | 172 PS
• VW Golf VII (type AU) | BJ 2012-2019 1.8L TSI (EA888) CXBB | 172 PS
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CHHA | 230 PS
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CJXC | 300 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CJXC | 360 PS
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CJXE | 265 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CJXG | 310 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DJHA | 310 HP
• VW Golf VII (type AU) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DLBA | 245 HP
• VW Passat B8 (3G) | BJ 2014-> 1.8L TSI (EA888 Gen.3) CJSA | 180 HP
• VW Passat B8 (3G) | BJ 2014-> 1.8L TSI (EA888 Gen.3) CJSC | 180 HP
• VW Polo VI (Type AW) | BJ 2017-> 2.0L TSI (EA888 Gen.3B MQB) DKZC | 200 HP
• VW T-Roc type A1 | BJ 2017-> 2.0L TSI (EA888) 190 HP
• VW Tiguan II (Type AD1) | BJ 2016-> 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 HP
• VW Tiguan II (Type AD1) | BJ 2016-> 2.0L TSI (EA888 Gen.3 MQB) CZPA | 180 HP
• VW Touran II (Type 5T) | BJ 2015-> 1.8L TSI (EA888 Gen.3 MQB) CJSA | 180 HP
• Škoda Karoq I (type NU7) | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) 190 PS
• Skoda Kodiaq I (NS7) | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) 180 PS
• Skoda Kodiaq I (NS7) | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) 190 PS
• Skoda Kodiaq I (NS7) | BJ 2017-> 2.0L TSI (EA888 Gen.3 MQB) 220 PS
• Škoda Octavia III (Type 5E) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CHHA | 230 PS
• Škoda Octavia III (Type 5E) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 HP
• Škoda Octavia III (Type 5E) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DKZA | 190 HP
• Škoda Octavia III (Type 5E) | BJ 2012-2019 2.0L TSI (EA888 Gen.3 MQB) DLBA | 245 HP
• Škoda Superb III (Type 3V) | BJ 2015-> 2.0L TSI (EA888 Gen.3 MQB) CHHB | 220 HP
• Škoda Superb III (Type 3V) | BJ 2015-> 2.0L TSI (EA888 Gen.3 MQB) CJXA | 280 HP
