BAR-TEK 2.0 TSI EA888 GEN2 ULTIMATE HIGH BOOST ENGINE KIT

Description

This kit is made for you if you are serious about performance upgrades. Our ULTIMATE Kit includes everything to make you and your engine happy: power up to 1000 HP with your 2.0L TSI engine!

Perfectly tuned: ULTIMATE 2.0L TSI kit for performance up to 1000 HP

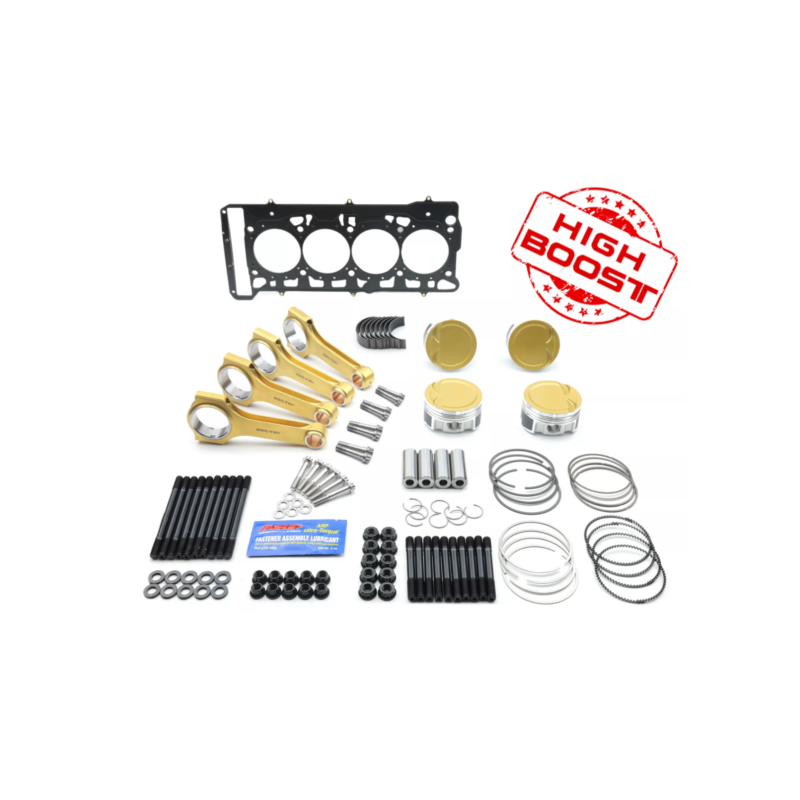

Whenever you think more isn""t possible, think about this kit. Because here we have outdone ourselves once again. The ULTIMATE kit isn""t called that for nothing! Here you have everything you need for the best performance with your 2.0L TSI: a perfectly matched combination of forged pistons, connecting rods, connecting rod screws, connecting rod bearings, head gasket and stud.

Visually alone, this set can do it all: Our BAR-TEK® H-Shaft steel connecting rods are riveted in titanium, which is why they shine gold. The matching high-performance pistons from JE Pistons are available as the Ultra series. All other parts are also high quality: ARP connecting rod bolts, ACL connecting rod bearings, Cometic MLS head gasket and ARP block and head stud.

This is really all you need. Not only do these components work in perfect harmony with each other, but you also save money in the set compared to purchasing individually!

Extreme kit for extreme performance

Our kit is obviously not only visually appealing, but is also designed for extreme performance. With this kit you can reach up to 1000 HP with your 2.0L TSI! This is due to the fact that we only pack the best components in our Ultimate Kit and these are also optimally matched to each other.

The JE Pistons piston in this kit is extra coated for extreme performance and comes with high boost piston pins. At the same time they are still quite light. This combination is obviously perfect for motorsports. Everything needed for installation is supplied with the piston: bolts, rings and clips.

Also extremely light and at the same time very stable are our special connecting rods made of nitrided titanium steel. Thanks to their surface, they can withstand high pressure loads without problems. They are machined from solid and have an additional hole for better lubrication of the pin (Drilled Rifle). They also come with everything you need for installation: matching ARP2000 expansion bolts and installation paste.

These two parts are the stars of the kit and are complemented by high-performance bolts, racing lead bearings and the like. As I said, it simply doesn""t work anymore!

High Performance Piston Features:

• Extremely light thanks to the special alloy
• Reinforced for maximum performance
• Also for standard bore 82.50 mm
• 21 mm piston pin
• For 2.0L TSI with first and second generation EA888 engine type
• Installation and drilling dimensions are included

Features of the nitrided titanium H-Shaft connecting rod:

• Titanium nitride
• high resistance milled from solid
• suitable for extreme power increases of 1000 HP
• extremely light and very stable
• Magnaflux inspected
• 4 pieces per set
• Dimensions: 144 x 21 mm
• Weight for connecting rod with screws only approximately 600 grams
• With oil riser hole for pin lubrication (Drilled Rifle)
• Precisely angled and tested in our factory
• WITH ARP 2000 3/8 expansion screws?

Features of ACL connecting rod bearings:

• ACL Racing bearing
• extra coated
• extra hole for the piston pin

APR stud features for block and head:

• A MUST for all engines that operate with higher boost pressure!
• The most important bolts from the world market leader ARP.
• The studs are made of 8740 Chromoly steel and have rounded threads.
• Extensible steel up to 40% stronger than stock bolts.
• All ARP performance bolt kits include ARP paste.
• Additional ARP bolts for bearing blocks

MLS head gasket features

• Multilayer metal head gasket
• Butt thickness for an optimal compression ratio of 9.5:1

Suitable for all 2.0L TSI EA888 engines with chain installed on Golf 6, Audi TT, Audi A3, Scirocco and many other second generation 2.0L TSI engines.

We recommend in any case to reinforce the valve train with our valve springs and Ferrea valves.

Suitable for

• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA888) CAWB | 200 HP
• Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA888) CCZA | 200 HP
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CAEA | 180 HP
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CAEB | 211 PS
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CDNB | 180 HP
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CDNC | 211 PS
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CFKA | 180 HP
• Audi A4 / S4 / RS4 B8 (8K type) | BJ 2007-2015 2.0L TFSI (EA888) CNCD | 225 PS
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) 211 HP (CA & USA)
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) 220 HP (CA & USA)
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CDNB | 180 HP
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CYNB | 252 PS
• Audi A6 / S6 / RS6 C7 | BJ 2011-2018 2.0L TFSI (EA888) CYPA | 252 PS
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CCTA | 200 HP
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CCZC | 170 HP
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CPSA | 211 PS
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CULB | 180 HP
• Audi Q3 / RS Q3 8U | BJ 2011-2018 2.0L TFSI (EA888) CULC | 220 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CADA | 211 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CAEB | 211 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDNB | 180 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDNC | 211 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CDZA | 180 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNBC | 180 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCB | 180 HP
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCD | 225 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CNCE | 230 PS
• Audi Q5 / SQ5 8R | BJ 2008-2017 2.0L TFSI (EA888) CPMA | 211 PS
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA888) CCZA | 200 HP
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA888) CESA | 211 PS
• Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA888) CETA | 211 PS
• Seat Altea I | BJ 2004-2015 2.0L TFSI (EA888) CCZB | 211 PS
• Seat Exeo I (Type 3R) | BJ 2008-2013 2.0L TFSI (EA113, EA888) CDND | 210 HP
• Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TSI (EA888) CCZB | 211 PS
• VW Eos I (Type 1F) | BJ 2006-2015 2.0L TSI (EA888) CAWB | 200 HP
• VW Eos I (Type 1F) | BJ 2006-2015 2.0L TSI (EA888) CCZA | 200 HP
• VW Eos I (Type 1F) | BJ 2006-2015 2.0L TSI (EA888) CCZB | 211 PS
• VW Golf VI (Type 5K1) | BJ 2008-2012 2.0L TFSI (EA888) CCZB | 211 PS
• VW Jetta / Vento / Bora V – Jetta / Vento / Bora / Sagitar – (Typ 1K2/1KM) | BJ 2005-2010 2.0 TSI (EA888) CAWB | 200 HP
• VW Jetta / Vento / Bora VI – Jetta / Vento / Sagitar / Lavida – (Typ 162) | BJ 2010-2018 2.0L TSI (EA888) CCZA | 200 HP
• VW Jetta / Vento / Bora VI – Jetta / Vento / Sagitar / Lavida – (Typ 162) | BJ 2010-2018 2.0L TSI (EA888) CPLA | 210 HP
• VW Passat B7 (3C/36) | BJ 2010-2015 2.0L TSI (EA888) CCZB | 211 PS
• VW Passat CC (35) | BJ 2008-2016 2.0L TSI (EA888) CAWB | 200 HP
• VW Passat CC (35) | BJ 2008-2016 2.0L TSI (EA888) CCZB | 211 PS
• VW Scirocco III (Type 13) | BJ 2008-2017 2.0L TSI (EA888) CAWB | 200 HP
• VW Scirocco III (Type 13) | BJ 2008-2017 2.0L TSI (EA888) CCZB | 211 PS
• VW Scirocco III (Type 13) | BJ 2008-2017 2.0L TSI (EA888) CULA | 180 HP
• VW Scirocco III (Type 13) | BJ 2008-2017 2.0L TSI (EA888) CULC | 220 HP
• VW Sharan II (Type 7N) | BJ 2010-> 2.0L TSI (EA 888 Gen.3) DEDA | 220 HP
• VW Sharan II (Type 7N) | BJ 2010-> 2.0L TSI (EA888) CCZA | 200 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CAWA | 170 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CAWB | 200 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCTA | 200 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCZA | 200 HP
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCZB | 211 PS
• VW Tiguan I (Type 5N) | BJ 2007-2016 2.0L TSI (EA888) CCZD | 180 HP
• Škoda Octavia I (Type 1U) | BJ 1996-2010 1.8T 20V ARX | 150 HP
• Škoda Octavia II (Type 1Z) | BJ 2004-2013 1.8L TSI (EA888) CDAA | 160 PS
