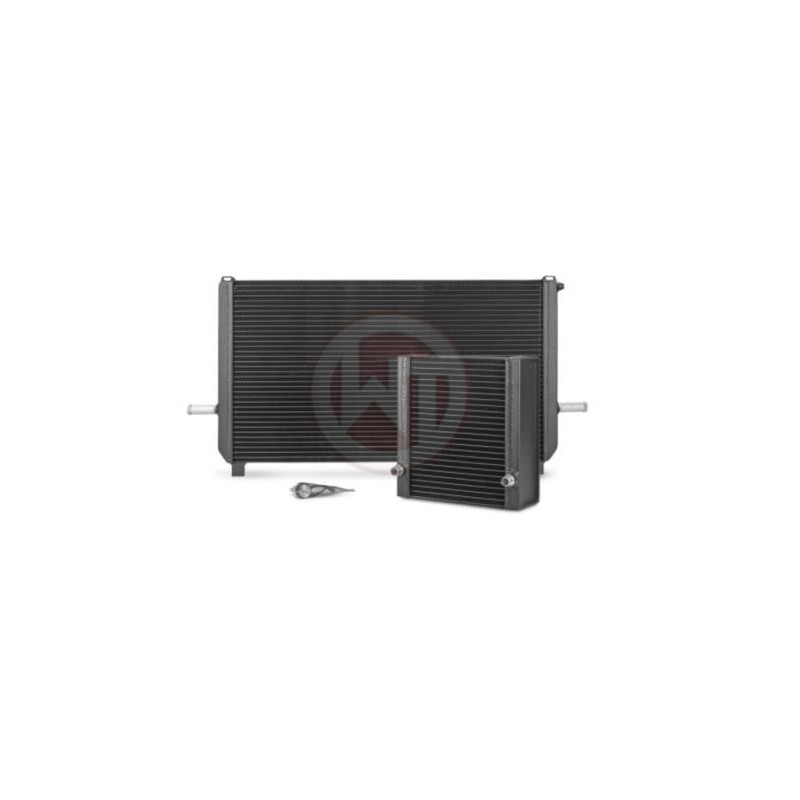

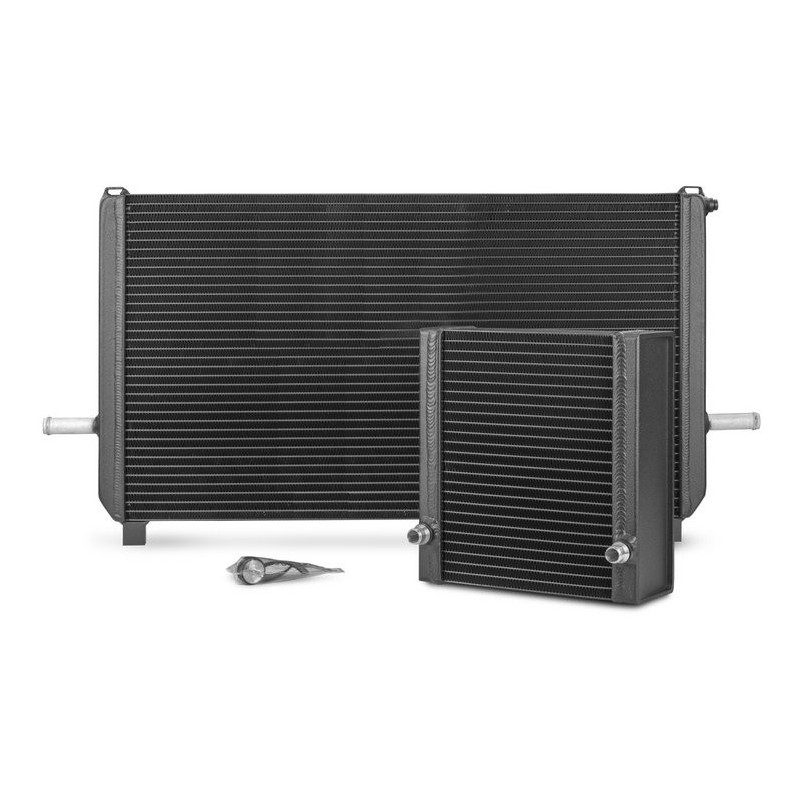

WAGNER TUNING WATER RADIATOR KIT – MERCEDES BENZ A45 AMG

Description

Wagner Tuning racing water radiator kit for Mercedes AMG A45 and CLA 45.

It fits the following vehicles:

Mercedes Benz W176 A 45 AMG 265-280KW / 360-381PS (2013-2018)
Mercedes Benz C117 CLA 45 AMG 265-280KW / 360-381PS (2013-2018)
Mercedes Benz X156 GLA 45 AMG 265-280KW / 360-381PS (2014-2019)

The 2.0LM 133 turbo engine of the specified A-Class models from AMG is equipped with an indirect intercooler circuit.
The newly developed racing nets of the WAGNER TUNING high-performance water cooler increase the volume of the standard water cooler by 78%. The used ratio of internal and external cooling surface generates maximum heat transfer and at the same time allows adjacent components (e.g. engine water radiator) sufficient air flow for heat exchange. In addition, the water coolers are equipped with a thermally conductive anti-corrosion coating, which ensures a permanent cooling effect. The installation of the system is also simple and plug & play with the help of the installation instructions.

With parts certificate.

OEM front radiator dimensions:

640 mm x 390 mm x 16 mm

V = 3.99 litres

A = 2496 cm²

WT front radiator dimensions:
616 mm x 362 mm x 32 mm
V = 7.14 litres
A = 2230 cm²

OEM side radiator dimensions:
248 mm x 180 mm x 40 mm
V = 1.79 litres
A = 446 cm²

WT side radiator dimensions:
252 mm x 184 mm x 68 mm
V = 3.15 litres
A = 464 cm²
