INTERCOOLER KIT WAGNER COMPETITION AUDI A6 C8 3.0TDI / AUDI A7 C8 3.0TDI – 45TDI – 50TDI

Description

200001156 – New version of the 3rd quarter 2019

Competition Intercooler Kit for Audi A6 / A7 C8 suitable for the following cars:

Audi A6 C8 45TDI 170KW / 231PS (2018+)
Audi A6 C8 50TDI 210KW / 286PS (2018+)
Audi A7 C8 45TDI 170KW / 231PS ( 2018+)
Audi A7 C8 50TDI 210KW / 286PS (2018+)

The competition intercooler has the following core dimensions (550 mm x 445 mm x 70 mm = 17,130 cm³). The high-performance intercooler core offers a 134% larger frontal area and 105% more volume than the standard-fitted intercooler. Our engineers increased the size and efficiency of the intercooler core, as well as improved the final tank design to remove any OEM bottlenecks, resulting in increased flow rate and charge cooling properties. We use our award winning WAGNERTUNING Competition Intercooler Core, made specifically for this application. Built with the highest quality Tube Fin intercooler cores with internal turbulators combined with CFD optimized die-cast aluminum end tanks for the best possible internal airflow.
The connection diameters are Ø62mm at the intercooler inlet and Ø67mm at the intercooler outlet.
The result is excellent cooling properties and a much lower pressure drop than the stock intercooler. Despite its size, the weight of the entire intercooler is only 9.5 kg. This intercooler kit is the best choice when it comes to performance improvements and low intake temperatures and also just the thing for racing. All our intercoolers use a protective anti-corrosion coating with perfect thermal heat dissipation character. Optimal cooling with significantly more power. The kit is ready to install, 100% plug and play. All our products are subjected to rigorous quality controls.

Standard intercooler dimensions:
720 mm x 145 mm x 80 mm
V = 8.35 litres
A = 1044 cm²

WAGNERTUNING intercooler dimensions:
550 mm x 445 mm x 70 mm
V = 17.13 litres
A = 2447 cm²

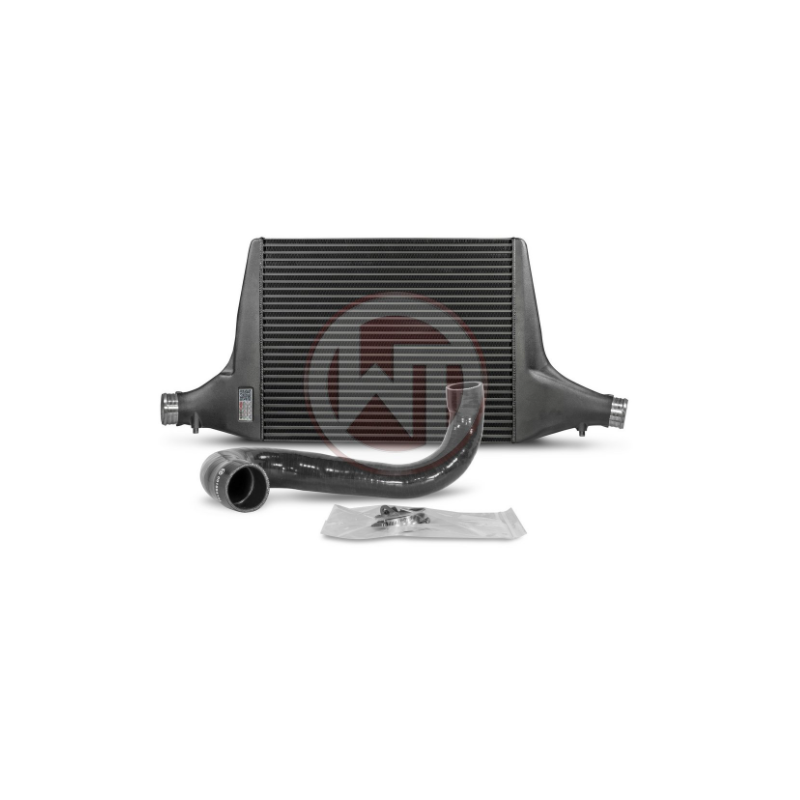

Packing list:
1 intercooler (coated in black)
1 flexible silicone hose (black)
1 mounting material
1 installation instruction
