INTERCOOLER KIT WAGNER COMPETITION AUDI A6 C7 3.0 BiTDI / AUDI A7 C7 3.0 BiTDI

Description

200001103 – Competition Intercooler Kit for Audi A6 / A7 4G 3.0BiTDI suitable for:

Audi A6 4G (allroad) 3.0 BiTDI 230KW / 313PS 2011-2014
Audi A6 4G (allroad) 3.0 BiTDI 235-240KW / 320-326PS 2014-
Audi A7 4G 3.0 BiTDI 230KW / 313PS 2011-2014
Audi A7 4G 3.0 BiTDI 235-240KW / 320-326PS 2014-

This racing intercooler has the following core dimensions (610 mm x 440 mm x 65 mm = 17.446 l / 24 inches x 17.3 inches x 2.56 inches = 1064.62 inches³), providing 178% more frontal area and 158% more volume than the stock-fitted intercooler. Our engineers increased the size and efficiency of the intercooler core, as well as improved the final tank design to remove any OEM bottlenecks, resulting in increased flow rate and charge cooling properties. Despite its size, the weight of the entire intercooler is only 9.1 kg.

Constructed with the highest quality TUBE and FIN intercooler cores with internal turbulators combined with CFD-optimized die-cast aluminum end tanks for the best possible internal airflow.
The intercooler inlets and outlets have been increased to Ø 67 mm (2.64 inches), so this kit comes with reinforced silicone hoses. This intercooler is the best choice when it comes to performance improvements and low intake temperatures. A much lower pressure drop than the OEM intercooler.
Protective anti-corrosion coating with perfect heat-dissipating character.

Optimal cooling with significantly greater power. The kit is ready to install, 100% perfect fit. Assembly is simple, replacing the OEM intercooler. All our products are subjected to rigorous quality controls.

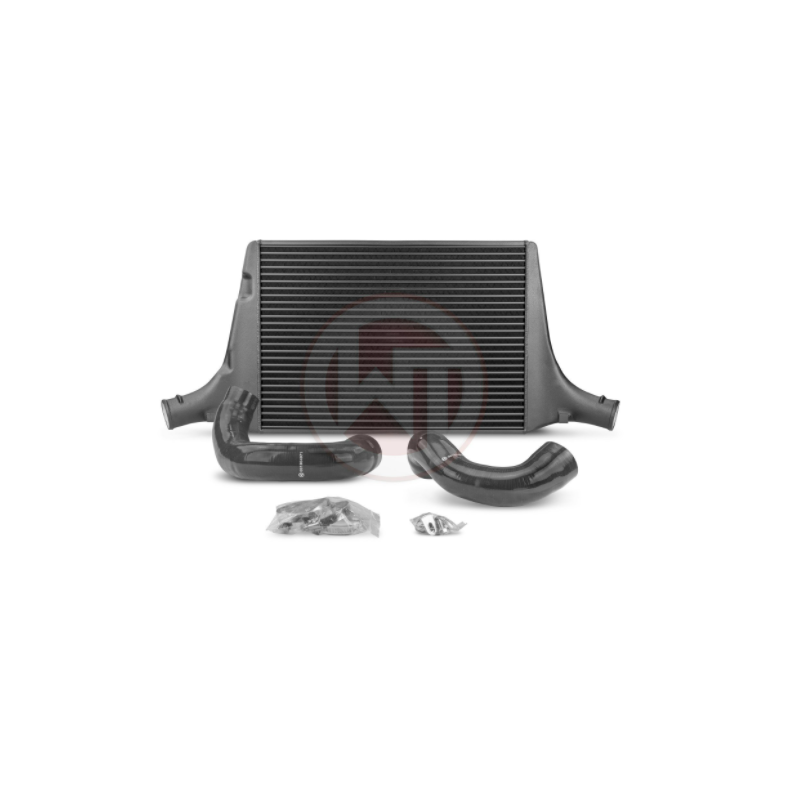

the kit includes:
1 intercooler
2 silicone hoses [67 mm (2.64 inches) inlet and outlet]
4 hose clamps 1 mounting material
1 installation instruction
