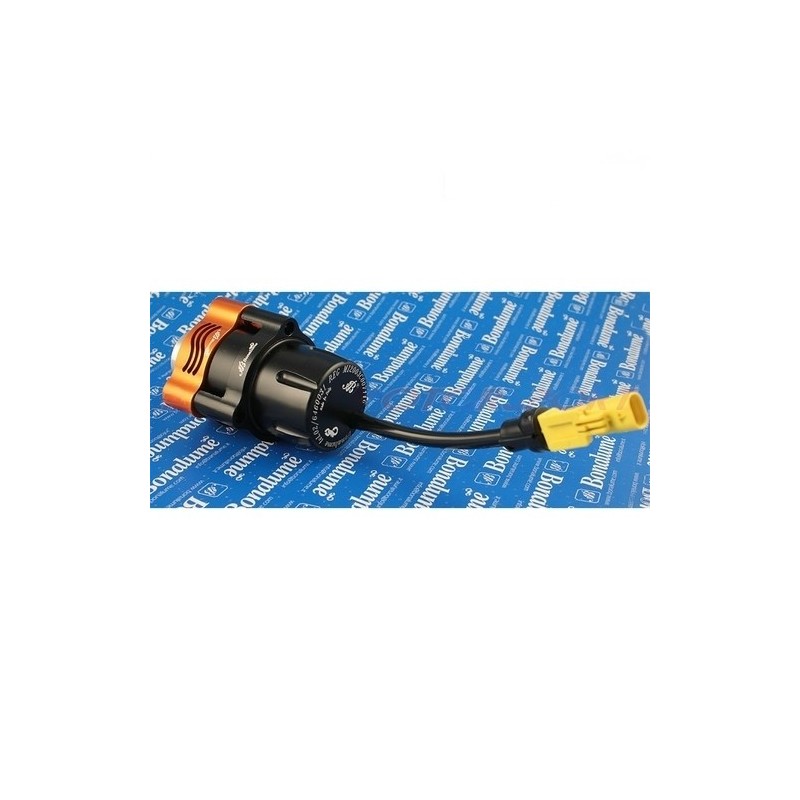

Plug and play electronic external vent pop off valve for Ford Mustang 2.3 Ecoboost 290cv - Bonalume EFM1S

The need to create this new product did not arise solely from the request for a racing product, but rather from the actual problem of this valve originally installed on the 2.3L turbo 290 hp engines. This, being a diaphragm, does not withstand the high peaks of pressure and temperature as required, causing it to break and at the same time affecting the performance of the engine both during acceleration and at full speed (drops in power during acceleration).
Some problems also occur in the presence of a healthy diaphragm, but with higher turbine pressures (after control unit programming).

The characteristics of our EFM1S valve are decidedly very high, which in addition to being totally plug and play in both the mechanical and electrical and electronic parts, has some outstanding features compared to the original product:

• No closing diaphragm, but piston in thermoplastic thermopolymer material for very high temperatures and performance (over 270° so no possibility of breakage);
• Low consumption and very high efficiency electromagnet (opening and closing times reduced by 20%);
• Guaranteed and tested operation at 3 bar with 170° inlet air temperature;
• Completely in automotive aluminum with very low lead content and anodized;
• 360° rotatable on the support bracket, for better positioning during installation;
• IP67 watertight electrical connector and valve/solenoid body;
• Black color like the original, therefore difficult to identify and dispute;
• Guaranteed for 2 years in all its parts;
• Possibility and ease of installation also by the customer user;
• Order Code: EFM1S
