FORGE MOTORSPORT – RECIRCULATION BLOW OFF VALVE KIT 1.8 / 2.0 TSI TFSI EA888.3 MQB

Description

FMDVMK7R – Product description

Forge Motor sport is proud to release the latest version of our popular solenoid valve for the VAG 1.8 TSI/TFSI (US codes CPKA and CPRA) and 2.0 TSI/TFSI (Euro codes CNTA, CHHA, CHHB, CJXB) engine from 2013 and CJXC; US codes CPLA and CPPA) including Golf MK7 R

This valve is completely designed to remedy the failure problems found with OEM solenoid valves when their diaphragm may fail, causing a loss of boost. Later revision OEM valves have a longer lift, but ultimately the plastic is brittle, and in extreme circumstances, parts of the plastic can break. Our valve uses an all-billet alloy construction with an internal piston-based design that provides significantly improved reliability over OEM valves along with lightning-fast response. It has even been proven in cars that exceed 600 HP!

This new valve has a very low overall installation height, which allows this atmospheric valve to be mounted in the narrow space between the turbo and the air filter inlet pipe, older larger valves and sandwich plates do not fit this engine.

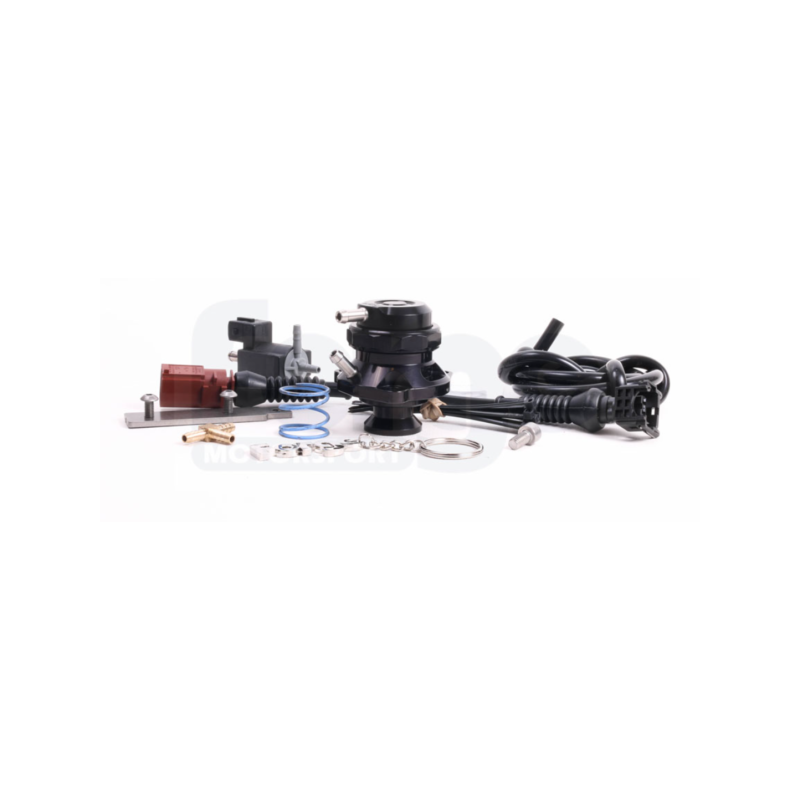

In the package:

– 1 x FMDVMK7R valve
– 1 x harness
– 1 x solenoid, bracket and screws
– 1 x Upgraded Blue Spring
– 10 x Cable Ties
– 1 x 1000 mm of 4 mm vacuum tube
– 1 x 5mm T-piece
– 1 x instructions
– 1 x Forge key ring and sticker
