INTERCOOLER KIT WAGNER COMPETITION OPEL ASTRA H OPC 2.0 TURBO

Description

200001105 – Competition intercooler kit for Opel Astra H OPC

Opel Astra H OPC 2.0 Turbo 177KW / 240PS (2005-2010)

The competitive high-performance intercooler has the following network dimensions (550 mm x 240 mm x 90 mm = 11,830 cm³) and thus offers 132% more charge air volume than the original intercooler. The newly developed racing performance mesh (tubular fin) ensures that adjacent components, such as the water cooler, still have sufficient airflow and is also very light. The intercooler has a total weight of only 7.5 kg. The die-cast aluminum end boxes were created in CAD and optimized for the best possible internal airflow with the help of CFD simulations. The intercooler inlets and outlets have been enlarged to Ø 65mm, so this kit comes with reinforced silicone hoses. Overall, this intercooler has much lower back pressure than the standard intercooler. Additionally, all of our intercoolers have an anti-corrosion coating with thermal conductivity properties. This ensures permanent, optimal cooling with a significant increase in performance. Assembly takes place by replacing the OEM intercooler and is easy to carry out. All our products are subject to constant quality monitoring.

Dimensions of the original intercooler:
525 mm x 346 mm x 28 mm
V = 5.1 litres
A = 1816 cm²

Dimensions of the WAGNERTUNING intercooler:
550 mm x 240 mm x 90 mm
V = 11.8 litres
A = 1320 cm²

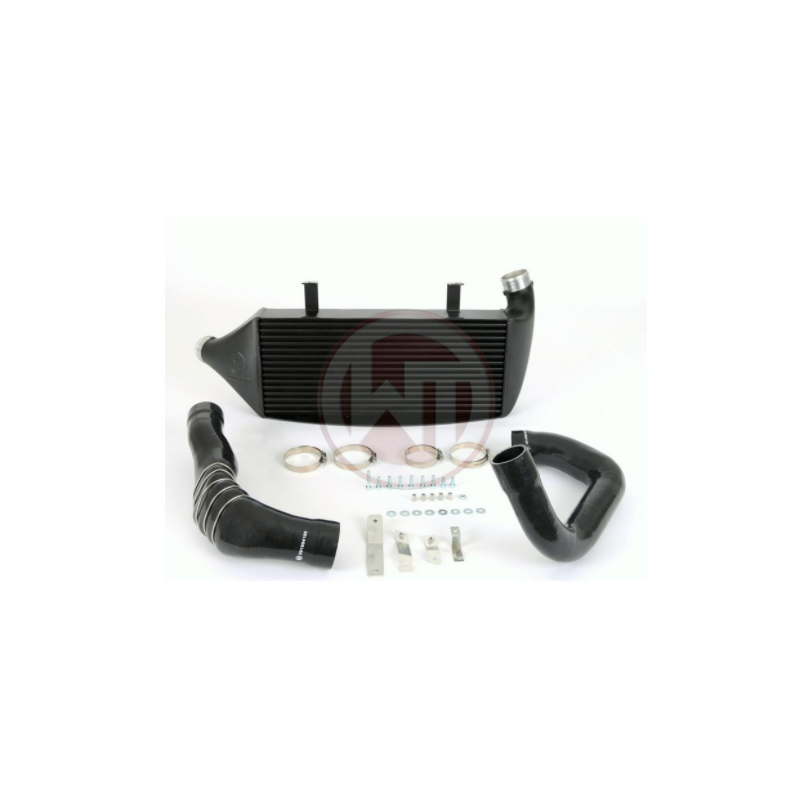

Supply:
– 1 intercooler (black coated)
– 2 silicone tubes (black)
– 1 mounting material
– 1 assembly instructions

– 1 TÜV parts certificate
