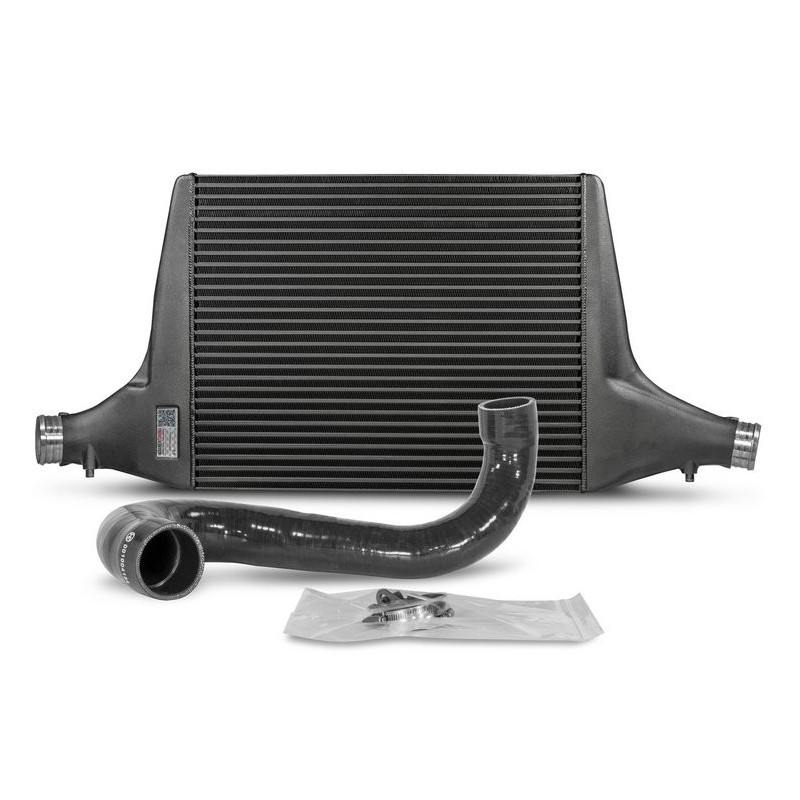

INTERCOOLER KIT WAGNER COMPETITION AUDI A4 B9 / AUDI A5 F5 2.0TFSI – 35TFSI 40TFSI 45TFSI

Description

200001126 – Competition intercooler kit for Audi A4 B9 / A5 F5 suitable for the following vehicles:

Audi A4 B9 2.0TFSI ultra 140KW / 190PS (2015-2018)
Audi A4 B9 2.0TFSI 185KW / 252PS (2015-2018)
Audi A4 B9 35TFSI 110KW / 150PS (2018+)
Audi A4 B9 40TFSI 140KW / 190PS (2018+)
Audi A4 B9 45TFSI 180KW / 245PS (2019+)
Audi A5 F5 2.0TFSI ultra 140KW / 190PS (2016-2018)
Audi A5 F5 2, 0TFSI 185KW / 252PS (2016-2018)
Audi A5 F5 35TFSI 110KW / 150PS (2018+)
Audi A5 F5 40TFSI 140KW / 190PS (2018+)
Audi A5 F5 45TFSI 180KW / 245PS (2019+)

The competitive high-performance intercooler has the following network dimensions (550 mm x 445 mm x 70 mm = 17,130 cm³) and thus offers a 134% larger inflow surface area and a 105% larger charge air volume than the original intercooler. The high performance competition net is a high quality tubular fin net with internal turbulators. Despite its size, the total weight of the intercooler is only 9.5 kg. The intercooler end boxes are made of cast aluminum and have been optimized with the help of flow analysis in the CFD system.
The connection diameters are Ø62 mm at the intercooler inlet and Ø67 mm at the intercooler outlet.
The result is excellent cooling properties with the lowest possible back pressure. Additionally, all of our intercoolers have an anti-corrosion coating with thermal conductivity properties. This ensures permanent, optimal cooling with a significant increase in performance. Completely ready to install kit, simply replace with a standard intercooler – plug and play. Tested up to 6 bar and pressure stable. All our products are subject to constant quality monitoring. Suitable for racing.

Dimensions of the original intercooler:
720 mm x 145 mm x 80 mm
V = 8.35 litres
A = 1044 cm²

Dimensions of the WAGNERTUNING intercooler:
550 mm x 445 mm x 70 mm
V = 17.13 litres
A = 2447 cm² Supply
