INTERCOOLER KIT WAGNER COMPETITION AUDI A4 B9 / AUDI A5 F5 3.0 TDI – 45TDI 50TDI

Description

200001127 – Competition intercooler kit for Audi A4 B9 / A5 F5 suitable for the following vehicles:

Audi A4 B9 3,0,0TDI 160-200KW / 218-272PS (2015-2018)
Audi A4 B9 45TDI 170KW / 231PS (2019 + )
Audi A4 B9 50TDI 210KW / 286PS (2019+)
Audi A5 F5 3.0TDI 160-210KW / 218-286PS (2017-2018)
Audi A5 F5 45TDI 170KW / 231PS (2019+)
Audi A5 F5 50TDI 210KW / 286PS ( 2019 +)

The competitive high-performance intercooler has the following network dimensions (550 mm x 445 mm x 70 mm = 17,130 cm³) and thus offers a 134% larger inflow surface area and a 105% larger charge air volume than the original intercooler. The high performance competition net is a high quality tubular fin net with internal turbulators. Despite its size, the total weight of the intercooler is only 9.5 kg. The intercooler end boxes are made of cast aluminum and have been optimized with the help of flow analysis in the CFD system.
The connection diameters are Ø62 mm at the intercooler inlet and Ø67 mm at the intercooler outlet.
The result is excellent cooling properties with the lowest possible back pressure. Additionally, all of our intercoolers have an anti-corrosion coating with thermal conductivity properties. This ensures permanent, optimal cooling with a significant increase in performance. Completely ready to install kit, simply replace with a standard intercooler – plug and play. Tested up to 6 bar and pressure stable. All our products are subject to constant quality monitoring. Suitable for racing.

Dimensions of the original intercooler:
720 mm x 145 mm x 80 mm
V = 8.35 litres
A = 1044 cm²

Dimensions of the WAGNERTUNING intercooler:
550 mm x 445 mm x 70 mm
V = 17.13 litres
A = 2447 cm²

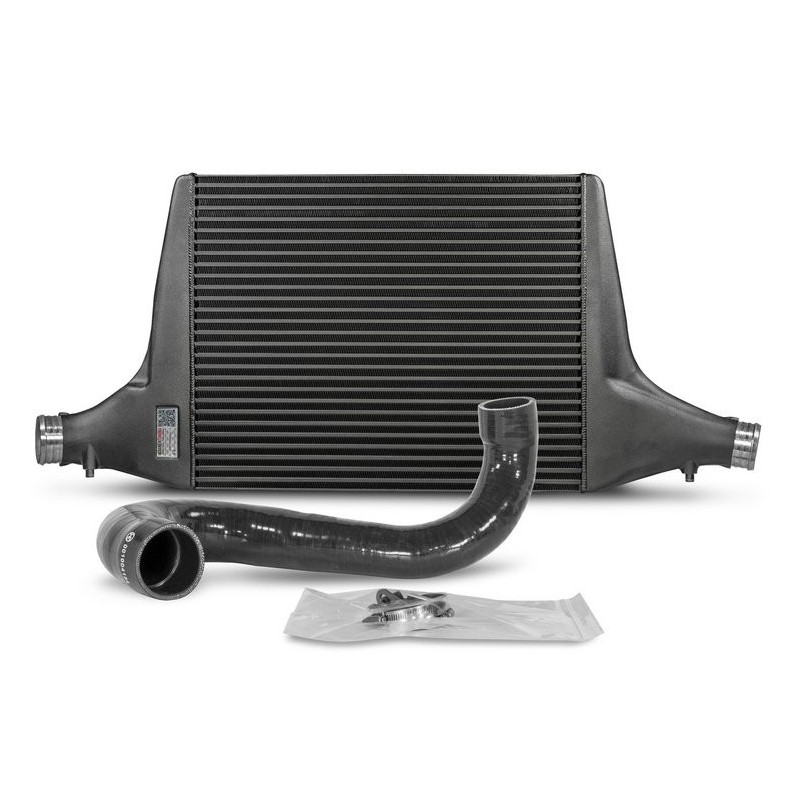

Supply:
1 intercooler (coated in black)
1 silicone tube (black)
1 mounting material
1 assembly instructions
