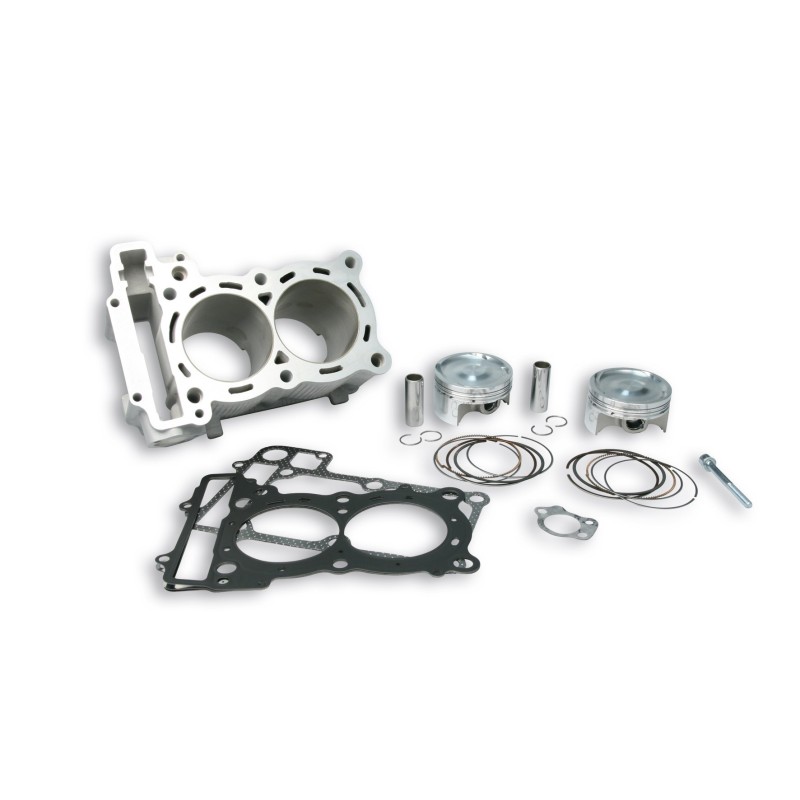

3115423 bi - cylinder 4 - stroke ø 70 in aluminum h2o for yamaha t max ie 4t 530 cc T MAX

3115423
star star star star star_half 4.72 / 5 (117 recensioni)
€870.65
Tax included
Quantity
In Stock

Description
Description

Super T
Max
Bi
Cylinder 4
stroke 560 cc

Malossi is pleased to present the ""Super T
Max"", an integral and absolutely Made in Italy reinterpretation of the most famous Maxiscooter of the
Yamaha!



Technical Characteristics

Bore: Ø 70 mm
Stroke: 73 mm
Total displacement: 560 cc.
Compression ratio: 1:12
Maximum power at: 7,800 rpm.
Monolithic double cylinder: in special alloy of
aluminium
silicon
copper, hardened and stabilized.
Barrels: with Cermetal coating (ni
ca
sil) worked with extreme
precision on latest generation machining centres.
Cross honed at 110/130.°
Forged pistons Ø 70 pin 16 with 3 segments: in special alloy of
aluminum (copper
silicon), hardened and tempered and tinned, shaped crown with
valve impression, racing design, reinforced and lightened, with
thicknesses constants.
Segments no. 3:

1st compression in chromed steel,
2nd oil scraper in phosphated steel,
3rd split in chromed steel with spring.


Increase in power of over 15%.
Extreme reliability.
Technology made in Italy.
Completely designed and produced in the Calderara di
Reno factories.
Personally supervised at every stage, from design to
production, by Malossi technicians, like all the products that bear
this brand.


The two-barrel monobloc with a dry and clean design created by Yamaha,
was customized by Malossi with significant measures and
updates that have allowed the bore to be significantly increased, without compromising the original mechanical and thermal balance.
The design of the pistons is completely particular, forged in a special
alloy, and designed to withstand the stress of use over long
journeys.
Nothing has been left to chance, from seals on the biconical pin
in super alloy steel and on the elastic band in chromed and
nitrided steel.
Every detail is a precious contribution so that this thermal unit
is truly exclusive: a product for a refined and
competent clientele!







Products reserved exclusively for competitions in places designated for them according to the provisions of the competent sporting authorities. We decline any responsibility for improper use

>Templates compatible

trong>YAMAHA T MAX 530 ie 4T LC 2012>2014 (J409E)

YAMAHA T MAX 530 ie 4T LC 2015>2016 (J409E)

YAMAHA T MAX 530 ie 4T LC euro 4 2017> (J415E)

YAMAHA T MAX DX 530 ie 4T LC euro 4 2017> (J415E)

YAMAHA T MAX SX 530 ie 4T LC euro 4 2017> (J415E)



Available spare parts:

complete bag of gaskets for cylinder ø 70 for original head 1115415b
pin ø 16x09x45 for piston 2315421
piston 4t ø 70 with pin ø 16 and 3 rectangular segments selection 0 3415808
4t piston ø 70 with pin ø 16 and 3 rectangular segments selection 00 3415808.00
piston 4t ø 70 with pin ø 16 and 3 rectangular segments selection a 3415808.a0
piston 4t ø 70 with pin ø 16 and 3 rectangular segments selection aa 3415808.aa
piston 4t ø 70 with pin ø 16 and 3 rectangular segments selection b 3415808.b0
piston 4t ø 70 with pin ø 16 and 3 rectangular segments selection bb 3415808.bb
4t piston ø 70 with pin ø 16 and 3 rectangular segments selection c 3415808.c0
piston 4t ø 70 with pin ø 16 and 3 rectangular segments selection cc 3415808.cc
segment set 4t ø 70 3513684
pin retainer ø 16x1.2 a c 36 4452

Look for the code next to the spare part in the site search to be able to find them buy
Product Details
Malossi
3115423
