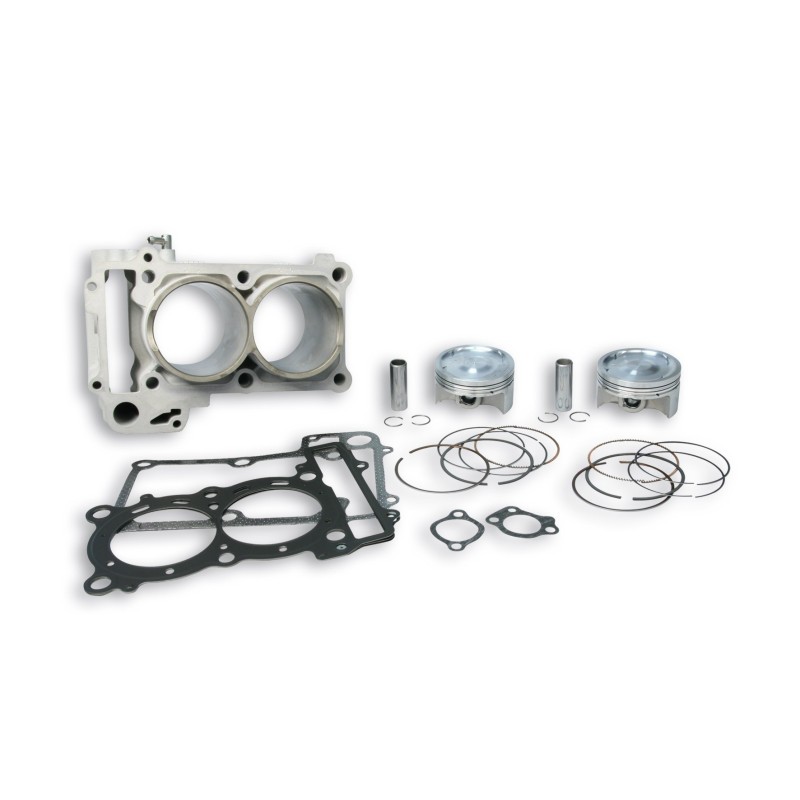

3113666 BI - CYLINDER 4 - STROKE Ø 70 IN ALUMINUM H2O FOR YAMAHA T MAX IE 4T LC 2004 - 2011 500 CC T MAX

3113666
star star star star star_half 4.7 / 5 (100 recensioni)
€870.65
Tax included
Quantity
In Stock

Description
Description

Super T
Max
Malossi is pleased to present the ""Super T
Max"", an integral and absolutely Made in Italy reinterpretation of the most famous Maxiscooter from
Yamaha!

Bi
Cylinder 4
stroke 560 cc.
Technical Characteristics

Bore Ø 70 mm
Stroke 73 mm
Total displacement: 560 cc.
Compression ratio: 1:12
Maximum power at: 7,800 rpm
Monolithic double cylinder: in special alloy of
aluminium
silicon
copper, hardened and stabilized.
Barrels: with Cermetal coating (ni
ca
sil) worked with extreme
precision on latest generation machining centres.
Cross honed at 110/130°
Forged pistons Ø 70 pin 15 with 3 segments: in special aluminum alloy (copper
silicon), hardened and tinned, shaped crown with
valve impression, racing design, reinforced and lightened, with
constant thicknesses.
Segments no. 3:
1st compression in chromed steel;
2nd oil scraper in phosphated steel;
3rd split in chromed steel with spring.



Increase in power of over 15%
Extreme reliability.
Technology made in Italy.
Completely designed and produced in the Calderara di
Reno factories.
Personally supervised at every stage, from design to
production, by Malossi technicians, like all the products that bear
this brand.

The two-barrel monobloc with a dry and clean design created by Yamaha,
has been customized by Malossi with significant details and
updates that have made it possible to significantly increase
the bore, without compromising the original mechanical and thermal balance.
The design of the pistons is completely particular, forged in a special
alloy, and designed to withstand the stress of use over long
distances.
Nothing has been left to chance, from the seals to the piston pin biconical
in super alloy steel and the elastic band in chromed and
nitrided steel.
Every detail is a precious contribution so that this thermal unit
is truly exclusive: a product for a refined and
competent clientele!



Products reserved exclusively for competitions in places designated for them according to the provisions of the competent sporting authorities. We decline any responsibility for improper use

< strong strong>Templates compatible

YAMAHA T MAX 500 ie 4T LC 2004>2007 ONLY FOR vehicles WITH HYDRAULIC CHAIN ​​TENSIONER

YAMAHA T MAX 500 ie 4T LC 2008>2011



Available spare parts:

complete gasket bag for cylinder ø 70 for original head 1114284b
pin ø 15x08x45 for piston 2313679
piston 4t ø 70 with pin ø 15 and 3 rectangular segments selection 0 3415679
piston 4t ø 70 with pin ø 15 and 3 rectangular segments selection 00 3415679.00
4t piston ø 70 with pin ø 15 and 3 rectangular segments selection aa 3415679.aa
4t piston ø 70 with pin ø 15 and 3 segments rectangular selection b 3415679.b0
piston 4t ø 70 with pin ø 15 and 3 rectangular segments selection bb 3415679.bb
piston 4t ø 70 with pin ø 15 and 3 rectangular segments selection c 3415679.c0
4t piston ø 70 with pin ø 15 and 3 rectangular segments selection cc 3415679.cc
piston 4t ø 70 with pin ø 15 and 3 rectangular segments selection d 3415679.d0
piston 4t ø 70 with pin ø 15 and 3 rectangular segments selection dd 3415679.dd
segment set 4t ø 70 3513684
pin stopper ø 15x1 a c 3611398b

Look for the code next to the spare part in the site search to be able to find them buy
