4613598 REAR SHOCK ABSORBER RS24, WHEELbase 316 MM T MAX

4613598
star star star star star_half 4.64 / 5 (40 recensioni)
€1,012.60
Tax included
Quantity
In Stock

Description
Description

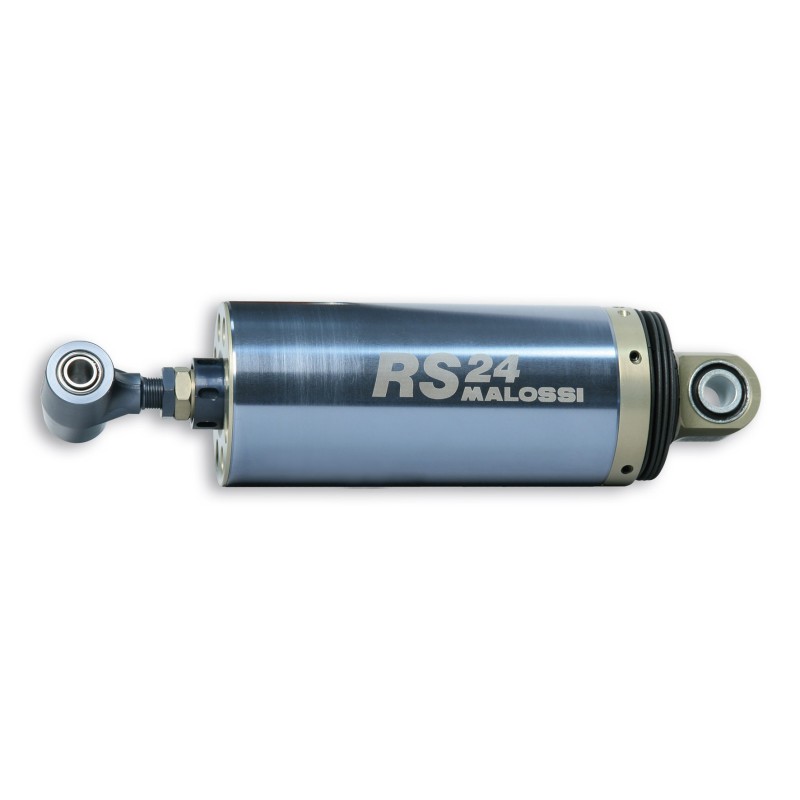

RS24 rear shock absorber

for Yamaha T
MAX 500cc

PATENTED hydro-pneumatic suspension

From the collaboration of Malossi technicians with the manufacturer Paioli a truly superlative, compact and super
rear suspension was born /> light.
A true oleopneumatic suspension with variable trim, with
adjustment of the hydraulics in extension, compensated by a
pressurized nitrogen chamber, equipped with a special patented spring preload
adjustment system capable of providing excellent driving comfort, both for sports and touring, with and without a passenger on board.
The project has been studied for a long time by the technicians of the two companies who,
accustomed to teamwork for years, have combined their
experiences to create an innovative suspension.
In order to guarantee the reliability of the new suspension, countless
prototypes were first created and then subjected to very severe
laboratory tests, which lasted for weeks on specific
test benches, before being tested on the road and in racetracks.
The versatility of this suspension has proven surprising thanks to the 3
new adjustment systems, which enhance its use on the road and
on the track:

Adjustment of the hydraulic system in extension to absorb all the roughness of the
terrain.

Spring preload to adapt the vehicle""s running position, depending on the weight
of the passengers. This suspension adopts a particular patented
system, unique in the world, which allows you to make all the necessary
adjustments simply by acting with a hexagonal key
on a screw located in the shock absorber head, in an easily accessible
position.

System for varying the set-up for cornering behaviour, if the vehicle is used for sporting purposes.



The peculiarity of the project consists precisely in the possibility of
carrying out all the necessary adjustments quickly and effectively,
without it being necessary to remove the shock absorber from the vehicle.

In the
project study phase, nothing was overlooked! Weight containment, for example, was one of the main objectives we set for ourselves: this is the reason why a large part of the components are made of ergal, forged, extruded and machined from solid wood, thanks to the best existing technologies. The result of this meticulous design has allowed us to achieve a weight saving of About 20%, in detail we
went from the 4,838 grams of the original to the 4,030 grams of the
RS24 suspension.
We believe that this is an important result in the direction of the sportiness
that the Super T concept
Max Malossi can boast!

RS24 Malossi for YamahaT
Max: an excellence
Made in Italy, a patent to be proud of!


TECHNICAL FEATURES



Oil-pneumatic suspension with pressurized nitrogen chambers.

Hydraulic rebound adjustment.


Patented spring preload adjustment.


Vehicle trim adjustment.


48 mm travel.


External sheath in ergal 55 with anodic oxidation in cobalt blue colour.

Adjustable stem forged in ergal 55 with anodic oxidation.

Stem made from Ergal 55 with anodic oxidation.

Scooter trim adjustment system, with mounted shock absorber.










Article





Wheelbase mm


Stroke mm




4613598


rear


316


45






Products reserved exclusively for competitions in places designated for them according to the provisions of the competent sporting authorities. We decline any responsibility for improper use
< /strong>

Templates compatible< /strong>

YAMAHA T MAX 500 ie 4T LC 2004>2007

YAMAHA T MAX 500 ie 4T LC 2008>2011

YAMAHA T MAX 530 ie 4T LC 2012>2014 (J409E)

YAMAHA T MAX 530 ie 4T LC 2015>2016 (J409E)

YAMAHA T MAX (carb.) 500 4T LC 2001>2003



Spare parts available:

anti-vibration ø 32x16 mm 0817062b
hook wrench for shock absorber 6013909b

Look for the code next to the spare part in the site search to find them buy
