BAR-TEK 2.0 TFSI EA113 HIGH PERFORMANCE ENGINE KIT

BTK-22tfsi08
star star star star star_half 4.98 / 5 (375 recensioni)
€1,522.05
Tax included
Quantity
In Stock

Description

Description

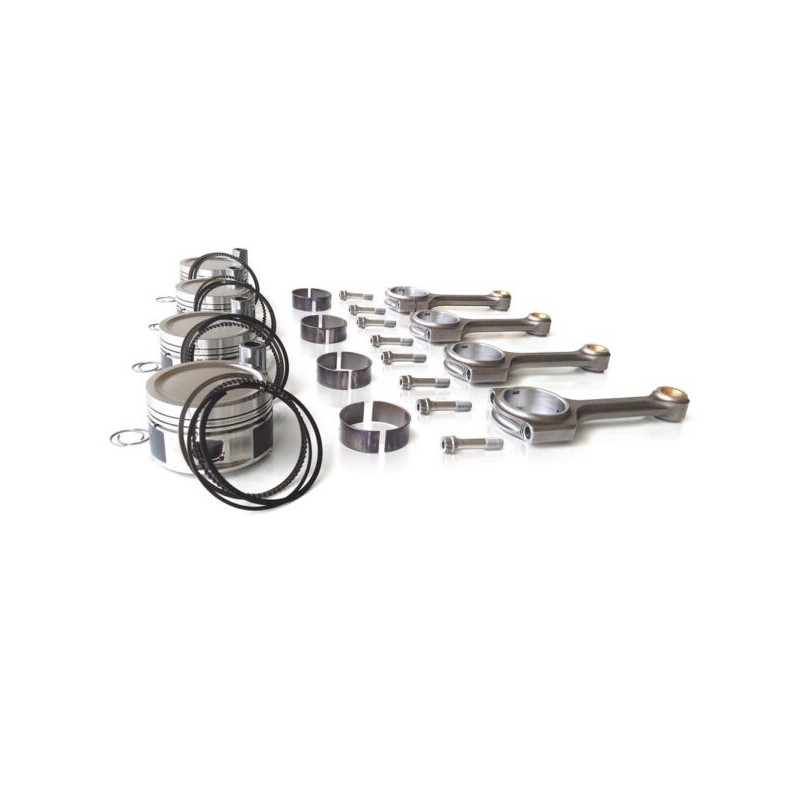

Bar-Tek X-Beam connecting rod and Je Pistons forged pistons for 2.0L TFSI engines

With our 2.0L TFSI set of high-quality JE forged pistons and our X-Beam connecting rods you get a great combination of stability, performance and safety. And you also save compared to buying a single one! With this set you can easily bring up to 650 HP on the road.

Suitable for your 2.0L TFSI EA113 engine with timing belt, the set consists of pistons, connecting rods and racing bearings. The pistons come from the established manufacturer JE Pistons. They are reinforced to withstand extreme loads. An alloy ensures that the pistons are also extremely light. For pistons marked with a Q in the design, our special oil spray nozzles for cooling the piston crown must be mounted. These can be found below in Accessories!

Our X-Beam connecting rods are milled from solid and yet very light (599 grams per rod). Their design ensures a larger cross-section, which in turn distributes loads across the entire connecting rod. This results in extremely stable, crack-resistant and robust connecting rods. A great combination for racing enthusiasts! The matching connecting rod bearings come from ACL. Like our connecting rods, they have an additional hole that optimizes the lubrication of the pins.

Features of the JE Pistons:

  • Extremely light thanks to the special alloy
  • Reinforced for maximum performance
  • Also for standard bore 82.50 mm
  • 20 mm piston pin
  • For 2.0L TFSI with EA113 type engine
  • For 144 x 20 mm connecting rods
  • Complete set incl. pins, elastic bands and clips
  • Installation and drilling dimensions attached

Features of our X-Beam connecting rods:

  • Original BAR-TEK®
  • milled from solid into a high-strength shape
  • suitable for extreme performance increases up to approx. 1000 HP
  • extremely light and very stable
  • Magnaflux inspected
  • 4 pieces per set
  • With ARP 2000 3/8 expansion bolts?
  • ARP assembly paste
  • Weight for connecting rod with screws only 599 grams
  • With additional hole for lubrication of the piston pin

Features of ACL connecting rod bearings:

  • Racing bearing
  • Coated
  • Extra hole for piston pin

The specified compression is in combination with a 0.90 mm head gasket.

Suitable for

  • Audi A1 / S1 8X | BJ 2010-2018 2.0L TFSI (EA113) CDLH | 256 PS
  • Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) AXX | 200 HP
  • Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) BHZ | 265 HP
  • Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) BPY | 200 HP
  • Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) BWA | 200 HP
  • Audi A3 / S3 / RS3 8P, 8PA | BJ 2003-2013 2.0L TFSI (EA113) CDLA | 265 HP
  • Audi A4 / S4 / RS4 B7 (Type 8E) | BJ 2004-2008 2.0L TFSI (EA113) BGB | 200 HP
  • Audi A4 / S4 / RS4 B7 (Type 8E) | BJ 2004-2008 2.0L TFSI (EA113) BPG | 200 HP
  • Audi A4 / S4 / RS4 B7 (Type 8E) | BJ 2004-2008 2.0L TFSI (EA113) BUL | 220 HP
  • Audi A4 / S4 / RS4 B7 (Type 8E) | BJ 2004-2008 2.0L TFSI (EA113) BWE | 200 HP
  • Audi A6 / S6 / RS6 C6 | BJ 2004-2011 2.0L TFSI (EA113) BPJ | 170 HP
  • Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA113) BPY | 200 HP
  • Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA113) BWA | 200 HP
  • Audi TT / TTS / TT RS 8J | BJ 2006-2014 2.0L TFSI (EA113) CDLB | 272 PS
  • Seat Altea I | BJ 2004-2015 2.0L TFSI (EA888) BWA | 200 HP
  • Seat Exeo I (Type 3R) | BJ 2008-2013 2.0L TFSI (EA113, EA888) BWE | 200 HP
  • Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWA | 185 PS
  • Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWA | 200 HP
  • Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWJ | 240 HP
  • Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWJ | 286 PS
  • Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TFSI (EA113) BWJ | 310 HP
  • Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TFSI (EA113) CDLA | 265 HP
  • Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TFSI (EA113) CDLA | 310 HP
  • Seat Leon II (Type 1P) | BJ 2005-2012 2.0L TFSI (EA113) CDLD | 240 HP
  • Seat Toledo III (Type 5P) | BJ 2004-2009 2.0L TSI (EA113) BWA | 200 HP
  • VW Eos I (Type 1F) | BJ 2006-2015 2.0L TFSI (EA113) BWA | 200 HP
  • VW Golf V (Type 1K) | BJ 2003-2008 2.0L TFSI (EA113) AXX | 200 HP
  • VW Golf V (Type 1K) | BJ 2003-2008 2.0L TFSI (EA113) BPY | 200 HP
  • VW Golf V (Type 1K) | BJ 2003-2008 2.0L TFSI (EA113) BWA | 200 HP
  • VW Golf V (Type 1K) | BJ 2003-2008 2.0L TFSI (EA113) BYD | 230 PS
  • VW Golf V (Type 1K) | BJ 2003-2008 2.0L TFSI (EA113) CDL | 240 HP
  • VW Golf VI (Type 5K1) | BJ 2008-2012 2.0L TFSI (EA113) CDLF | 270 HP
  • VW Golf VI (Type 5K1) | BJ 2008-2012 2.0L TFSI (EA113) CDLG | 235 PS
  • VW Passat B6 (3C) | BJ 2005-2010 2.0L TFSI (EA113) AXX | 200 HP
  • VW Passat B6 (3C) | BJ 2005-2010 2.0L TFSI (EA113) BWA | 200 HP
  • VW Polo V (Type 6R) | BJ 2009-2014 2.0 WRC (EA113) CDLJ | 220 HP
  • VW Scirocco III (Type 13) | BJ 2008-2017 2.0L TSI (EA113) CDLA | 265 HP
  • VW Scirocco III (Type 13) | BJ 2008-2017 2.0L TSI (EA113) CDLK | 280 HP
Product Details
Bar-tek
BTK-22tfsi08
