INTERCOOLER KIT WAGNER COMPETITION OPEL INSIGNIA OPC 2.8 V6 TURBO

Description

200001091 – Opel Insignia A OPC competition intercooler kit

Opel Insignia A 2.8 V6 Turbo 4×4 2008-2017
Opel Insignia A 2.8 V6 Turbo OPC 2009-2017

The competitive high-performance intercooler has the following network dimensions (610 mm x 440 mm x 65 mm = 17,446 cm³) and thus offers a 10% larger inflow area and a 138% larger charge air volume than the original intercooler. Competitive high-performance mesh offers excellent cooling properties. The weight of the intercooler is 9.75 kg. Free-form cast aluminum end boxes, developed in CAD, for the best possible internal airflow. Overall, this intercooler has much lower back pressure than the standard intercooler. Additionally, all of our intercoolers have an anti-corrosion coating with thermal conductivity properties. This ensures optimal cooling with a significant increase in performance. Complete kit ready to install, easy installation. Tested up to 6 bar and pressure stable. All our products are subject to constant quality monitoring. Suitable for racing. 70 mm inlet and outlet.

Dimensions of the original intercooler:
665 mm x 368 mm x 30 mm
V = 7.3 litres
A = 2447.2 cm²

Dimensions of the WAGNERTUNING intercooler:
610 mm x 440 mm x 65 mm
V = 17.4 litres
A = 2684 cm²

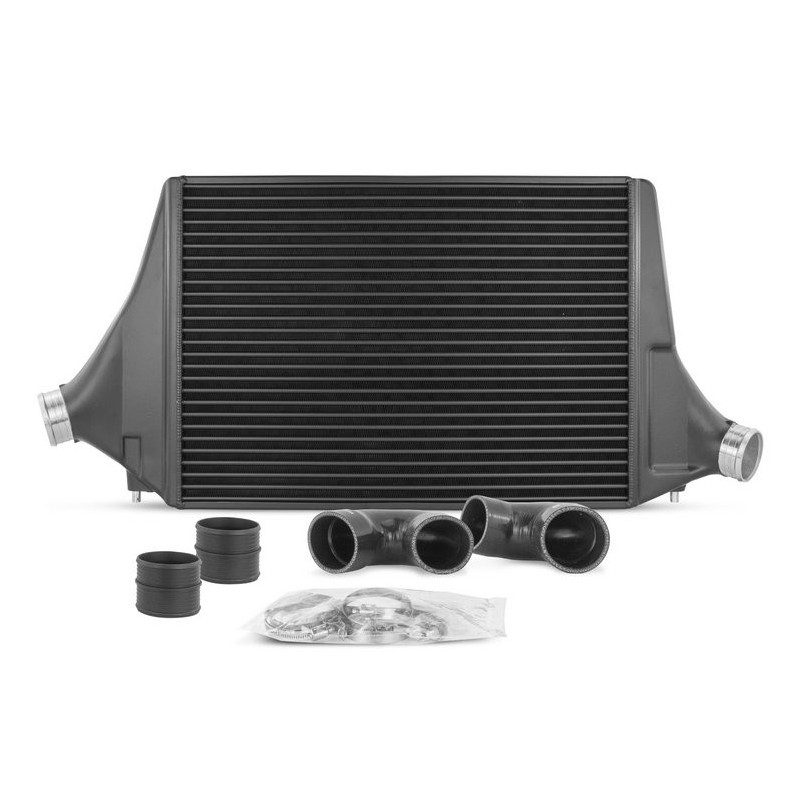

Supply:
– 1 intercooler
– 2 silicone tube
– 1 mounting material

– 1 assembly instruction

with parts certificate
