Race Engine Kit V3: Maximum Resistance for 1.4 T-Jet and MultiAir

Raise the performance of your 1.4 TJET Abarth or Alfa Romeo engine to the highest levels with the Race Kit V3. This "Premium" selection has been designed for the most demanding tuners aiming for power outputs of up to 650-700 HP, ensuring maximum mechanical reliability on the track and on the road.

By purchasing the complete kit, you not only get perfectly matched components, but also benefit from a significant saving compared to purchasing the individual pieces.

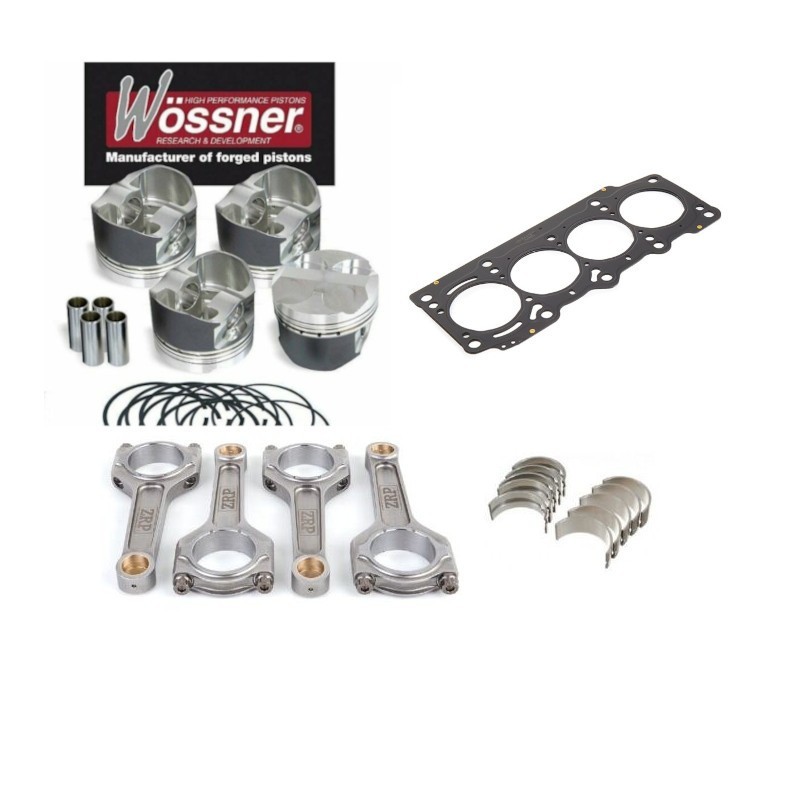

📦 Kit Contents

The package includes everything needed to reinforce the crankcase and cylinder head:

• Wössner Forged Pistons

• ZRP I-Beam connecting rods: Milled from solid for extreme loads.

• Connecting rod bushes.

• ARP Connecting Rod Bolts.

• Multilayer Head Gasket: Increased thickness of 1.6 mm for a perfect seal.

🔍 Technical Features in Detail

Wössner Forged Pistons

Designed to withstand high boost pressures, they use a special alloy that guarantees lightness and dimensional stability.

• Reinforced: Structure optimized to withstand extreme thermal loads.

• Compatibility: Also available for Standard bore.

• Complete Kit: Includes 18mm piston pins, piston rings, and retaining clips.

ZRP I-Beam Connecting Rods

I-Beam connecting rods offer a larger cross-section, distributing forces evenly to prevent cracking and warping.

• Material: High-strength, forged, machined steel.

• Safety: Magnaflux inspected to ensure no defects.

• Lubrication: Additional hole for cooling and lubrication of the plug.

• Hardware: Includes screws ARP 2000 5/16" and specific assembly paste.

 Seal 1.6mm

• Hermetic Seal: The 1.6 mm head gasket ensures optimal sealing even with varied compression ratios or significant turbo pressures.

🚗 Vehicle Compatibility

The Race Kit V3 is compatible with the 1.4 16v Turbo (T-Jet and MultiAir) engines of the following models:

• Abarth: 500, 595, 695, Grande Punto, Punto Evo, 124 Spider.

• Alfa Romeo: MiTo, Giulietta.

• Fiat: Grande Punto, Punto Evo, Bravo, 124 Spider.

• Lancia: Delta (new series).

💡 Why choose the V3 Kit?

"The combination of ZRP's I-Beam design and Wössner's metallurgical excellence makes this kit the ultimate choice for those who don't want to compromise. It is the necessary basis for any 'Big Turbo' project that exceeds 300 HP in total safety."
