EVENTURI CARBON V2 INTAKE KIT BMW M5 E60 / M6 E63

Eventuri carbon direct intake kit BMW 5 Series E60/E61 M5/M6

BMW E60 M5 / E63 M6

Performance Gain: 12-15 HP, 12-18 ft-lbs

Some images show our Carbon Plenum available separately.

Our updated E60/E63 M5/M6 intake system maintains the performance improvements of our original system and benefits from the experience we have gained over the years to achieve a more integrated design. By integrating the MAF hose into the carbon housing and replacing the OEM hoses with our custom made shorter versions, the system now has a seamless aesthetic. This intake is designed to have a positive impact on the entire driving experience. By leveraging aerodynamic principles and using computational fluid dynamics to optimize airflow, we""ve designed an intake system that delivers on all fronts: more precise throttle response, more torque and power, improved rideability and, of course, an intoxicating V10 induction sound. .

The Eventuri difference

The S85 Eventuri system uses our patent-pending carbon fiber housing that provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield, but a unique design that recalls the Venturi effect. You can read more about housing design and how it works HERE.

The dyno test was carried out on a Dyno Dynamics DS450 dynamometer. For the purpose of accurate testing, all tests were matched based on: - Inlet air temperatures through the IAT sensor integrated into MAF via OBDII - Matched ignition timing (ignition timing can change significantly from run to run) - Engine temperature (coolant and oil) - Exhaust gas temperature - Two consistent cycles recorded for each of the following tests Test procedure: - Test 1: Stock car, stock tuning, system stock intake and euro filters (equivalent to the elimination of carbon) - Test 2: as above plus Eventuri Upper intakes - Test 3: Stock car, stock tune, complete kit Eventuri VAi

Part numbers:

EVE-E60V2-CF-INT : BMW E6X M5/M6 V2 Black Carbon intake

COMPONENTS

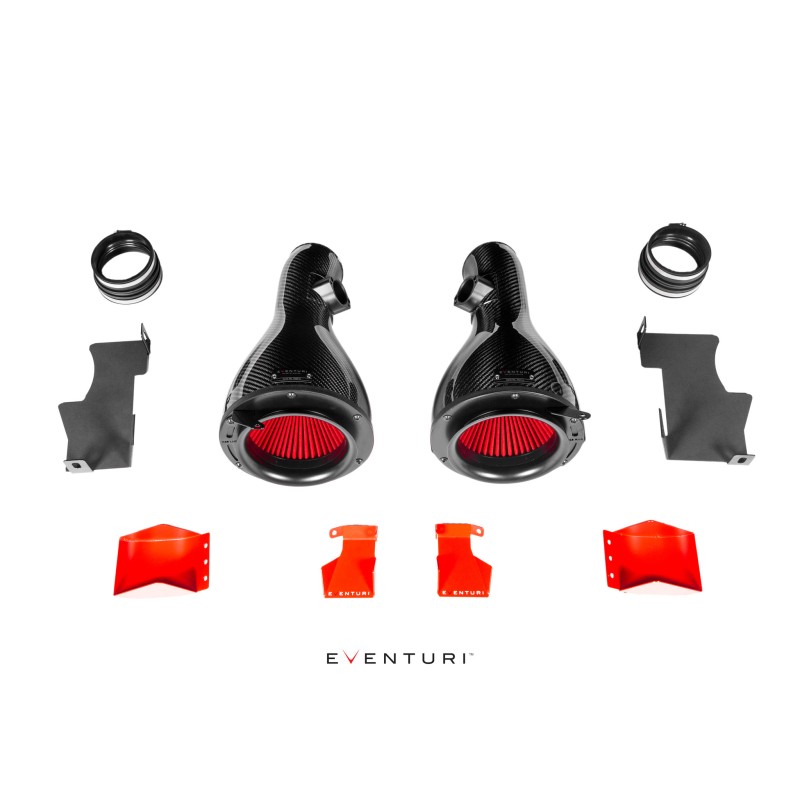

The E6X intake system contains a comprehensive number of high-quality components, including:

2 100% prepreg carbon fiber housings with integrated MAF tubes

Custom high flow air filters

2 custom-made EPDM couplers

CNC machined secondary airflow vent adapter

Aluminium extraction hoods

Laser cut mounting brackets

Laser-cut and neoprene-coated heat shields

Upper and lower air intakes in coated aluminum

OEM specification hose clamps with high quality silicone couplers

OEM quality anti-vibration mounts

PATENTED FILTER HOUSING

The E60 M5 V2 filter housings use our patented Venturi technology while incorporating the MAF tube section for a seamless flow path. The carbon housing wraps around the reverse-mounted filters and smoothly shapes the airflow to the MAF tubes where the volume is gradually reduced. This gradual reduction in cross-sectional area resembles the Venturi effect where airflow accelerates while maintaining laminar conditions. It can be thought of as a large velocity stack: Below is a diagram to show the comparison between our patented design and a normal intake system. Further details can be read on the Technology page. CUSTOM CONE FILTER The filter we chose for the E60 M5 system allows for a balance between the filtration area and the overall volume of the filter housing. By using a shorter cone we were able to optimize the housing shape for better flow to the MAF tubes while maintaining more than enough filtration area for CFM needs. The filter media is ISO tested to ensure the filtration is in line with OEM standards and is also dry. The filter is constructed with our signature flow cones to accommodate the venturi housing principle.

EPDM COUPLERS

By extending the housings further towards the plenum, we had to replace the OEM hose with our own version to maintain flexibility. Our EPDM couplers feature internal steps like OEM versions to create a smooth path between the housings and the plenum.

AIR INTAKES

Laser cut from aluminum and then powder coated, there are 2 air intakes positioned behind the front grilles and another 2 positioned in the lower brake ducts. The front vents are curved to smoothly direct ambient air into the stock ducts which then move heated air away from the intake area. The 2 bottom vents direct ambient air directly into the vent openings.

THERMAL SHIELDS

There are 2 aluminum heat shields with neoprene coating. They are located on the engine side of each intake and effectively divert hot air from the radiator, especially when the fan comes on.
