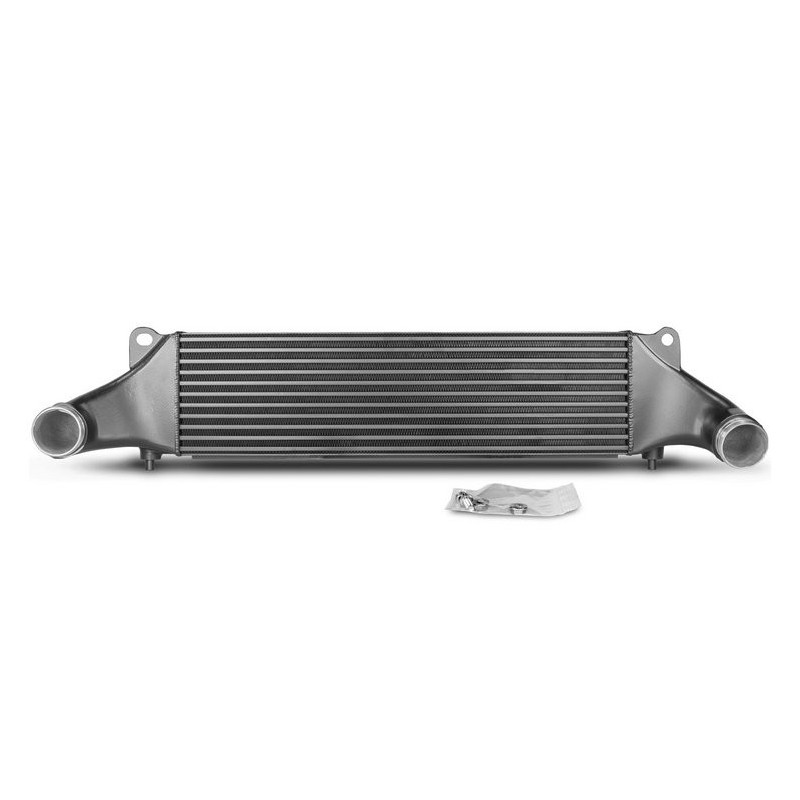

INTERCOOLER KIT WAGNER EVO1 AUDI RS3 8V / AUDI TTRS 8S/ AUDI RSQ3 F3 – 2.5TFSI

Description

200001107 – EVO1 competition intercooler kit for Audi RS3 8V and TTRS 8S

Audi RS3 8V Sportback 270KW / 367PS 04 / 2015-04 / 2016
Audi RS3 8V Sportback / Sedan 294KW / 400PS 08/2017 +
Audi TTRS 8S 294KW / 400PS 11/2016 +
Audi RSQ3 F3 294KW / 400PS 10/2019 +

The competitive high-performance intercooler has the following network dimensions (660x180x110 = 13,070 cm³) and thus offers a 14% larger inflow area and a 57% larger charge air volume than the original intercooler. The high performance competition net is a high quality tubular fin net with internal turbulators. Despite its size, the total weight of the intercooler is only 8.3 kg. The intercooler end boxes are made of cast aluminum and have been optimized with the help of flow analysis in the CFD system. The result is excellent cooling properties with the lowest possible back pressure. Additionally, all of our intercoolers have an anti-corrosion coating with thermal conductivity properties. This ensures permanent, optimal cooling with a significant increase in performance. Complete kit ready to install, simply replace with a standard intercooler – plug and play. Tested up to 6 bar and pressure stable. All our products are subject to constant quality monitoring. Suitable for racing.

Dimensions of the original intercooler:
640 mm x 163 mm x 80 mm
V = 8.3 litres
A = 1043 cm²

Dimensions of the WAGNERTUNING intercooler:
660 mm x 180 mm x 110 mm
V = 13.07 litres
A = 1188 cm²

Supply:

1 intercooler (coated in black)
1 assembly instructions

Not included STVO approved area.
